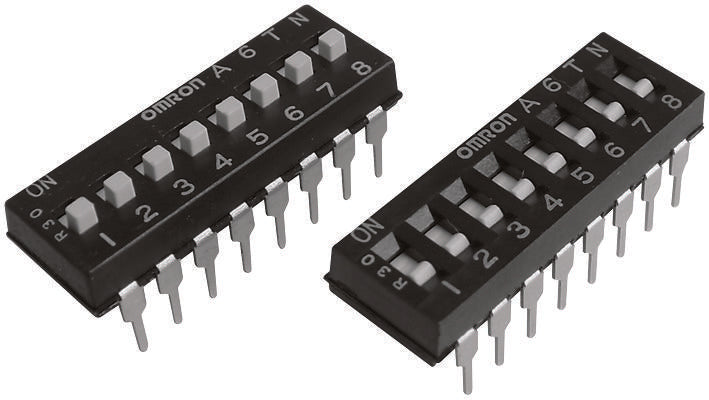

A6T-4104
★★★★★
4.8 / 5
Guaranteed Safe Checkout
| Rating (resistive load) | 25 mA at 24 VDC 10 mA (minimum current) at 3.5 VDC | |||||||
| Ambient operating temperature | –20 to +70°C at 60% max. (with no icing or condensation) | |||||||
| Ambient operating humidity | 35% to 95% (at +5 to +35°C) | |||||||
| Insulation resistance | 100 ML min. (at 250 VDC with insulation tester) | |||||||
| Contact resistance (initial value) | 200 mL max. | |||||||
| Dielectric strength | Between terminals | 500 VAC for 1 min | ||||||
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude | ||||||
| Shock resistance | Malfunction | 300 m/s2 min. | ||||||
| Durability | Electrical | 1,000 operations min. | ||||||
| Washing | Standard models: Not possible, Models with seal tape: Possible, Models with raised actuators: Not possible | |||||||
| Degree of protection | IEC IP40 | |||||||
| Operating force | 0.29 to 9.8 N {30 to 1,000 gf} | |||||||
| Weight | 0.26 g (2 poles), 0.44 g (4 poles), 0.62 g (6 poles), 0.79 g (8 poles), 0.96 g (10 poles) | |||||||
| Manufacturer: | Omron |
| Product Category: | DIP Switches/SIP Switches |
| Illuminated: | Non-Illuminated |
| Number of Positions: | 4 Position |
| Switch Type: | DIP |
| Actuator: | Slide |
| Terminal Pitch: | 2.54 mm |
| Termination Style: | Solder Pin |
| Current Rating: | 25 mA |
| Series: | A6T |
