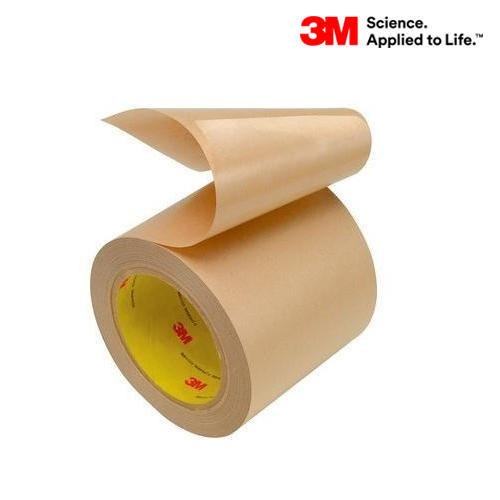

ECATT- 9703 3M Electrically Conductive Adhesive Transfer Tape

3M™ Electrically Conductive Adhesive Transfer Tape (ECATT) 9703 is a pressure sensitive adhesive (PSA) transfer tape with anisotropic electrical conductivity.

• PSA adhesion properties
• Thermal curing not required
• Easy to use in assembly work
• Can be used as die-cut parts or in roll form

• 3M™ Electrically Conductive Adhesive Transfer Tape (ECATT) 9703 is ideal for interconnection of flexible circuits with other flexible circuits (flex), rigid printed circuit boards (PCB) or LCD screens. Applications include polyester flex circuit splicing, keyboard manufacturing, LCD assembly and many others. 3M ECATT 9703 is also ideal for EMI/RFI shield and gasket attachment applications. Applications include EMI shields for displays and gasket attachment to EMI/RFI cabinets and enclosures.
