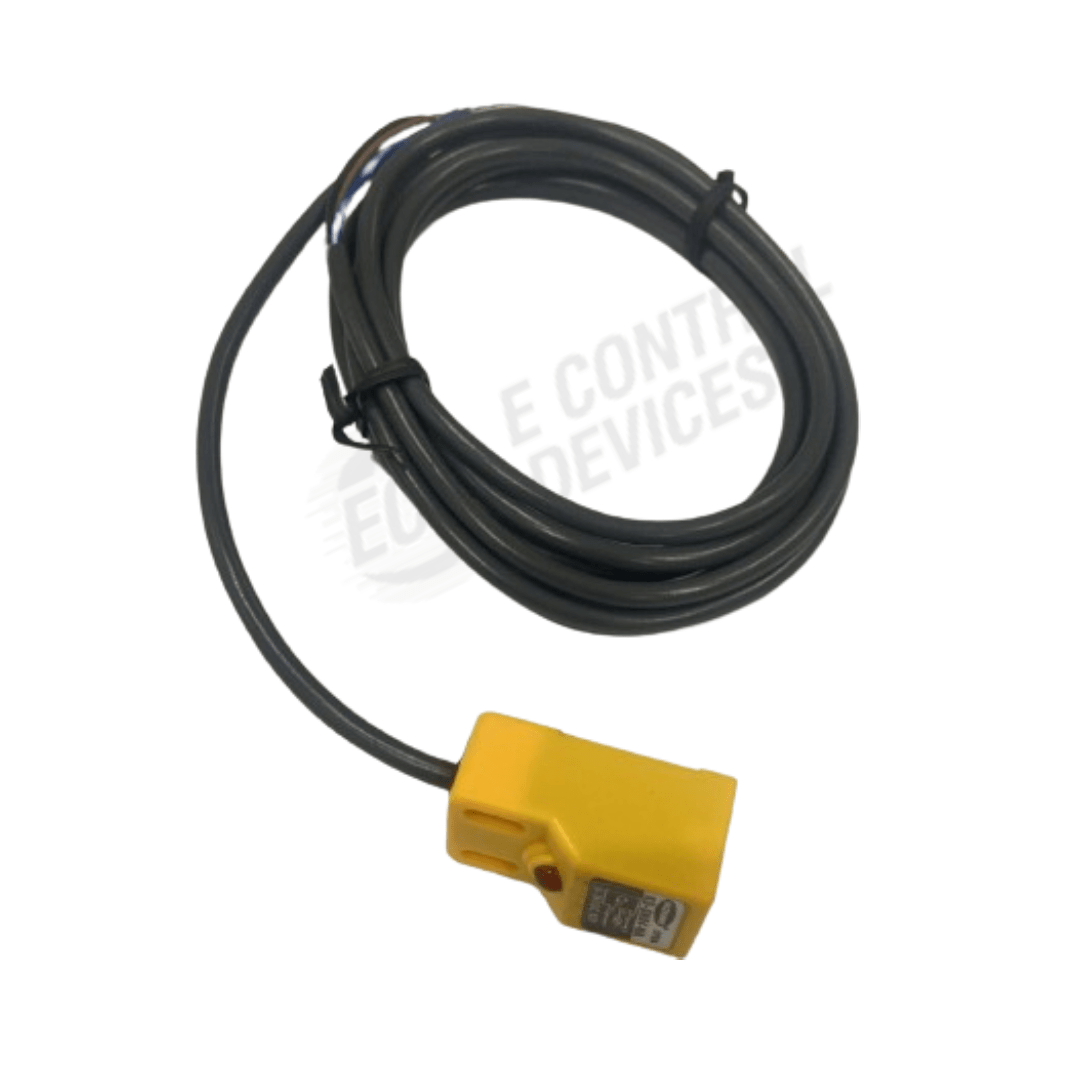

KD-SN04-NA Inductive Sensor
★★★★★
4.8 / 5
Guaranteed Safe Checkout
upraise your sensing capabilities with the KD-SN04-NA Inductive Sensor. With a 4mm sensing distance and user-friendly design, this sensor ensures seamless integration. The red LED indicator and built-in protections add to its reliability, making it an economical and efficient solution for your sensing needs.
KD-SN04-NA Inductive Sensor - Precision in Every Detail
Experience precision at its finest with the KD-SN04-NA Inductive Sensor from KELTRONIC DYNA. This sensor, featuring NPN NO output, is meticulously crafted for reliable performance in diverse applications.
Technical Details:
- Model: KD-SN-04-NA
- Output: NPN NO
- Sensing Distance: 4mm
- Size: 171728mm
- Setting Distance: 0-3.5mm
- Hysteresis: Max 10% sensing distance
- Power Supply: 12-24 VDC
- ... (Additional technical details)
Features:
- Surge and Polarity Protection: Safeguard your equipment with internal surge and reverse polarity protection.
- Reliability: Built for longevity and reliability, ensuring a prolonged operational life cycle.
- Easy Installation: Designed for straightforward installation, offering an economical and hassle-free solution.
- LED Status Indication: The red LED indicator provides instant visual confirmation of the sensor's operational status.
- IP67 Protection Structure: Robust protection against dust and water, enhancing durability in challenging environments.
- Versatility: Replaceable for micro switches and limit switches, providing flexibility in various applications.
| Model: | KD-SN-04-NA |
| Output: | NPN NO |
| Sensing Distance: | 4mm |
| Size: | 171728mm |
| Setting Distance: | 0-3.5mm |
| Hysteresis: | Max 10% sensing distance |
| Power Supply: | 12-24 VDC |
| Leakage current | Max 10 mA |
| Residual Voltage | Max 1.0 V |
| Frequency | 500Hz |
| Affection By Temperature | 20 to +70 degree Celsius |
| Control Output | Max 200mA |
| Insulating Resistance | min 50 Mohm |
| Die electric strength | 1500VAC 50/60 Hz |
| Material - | Plastic |
