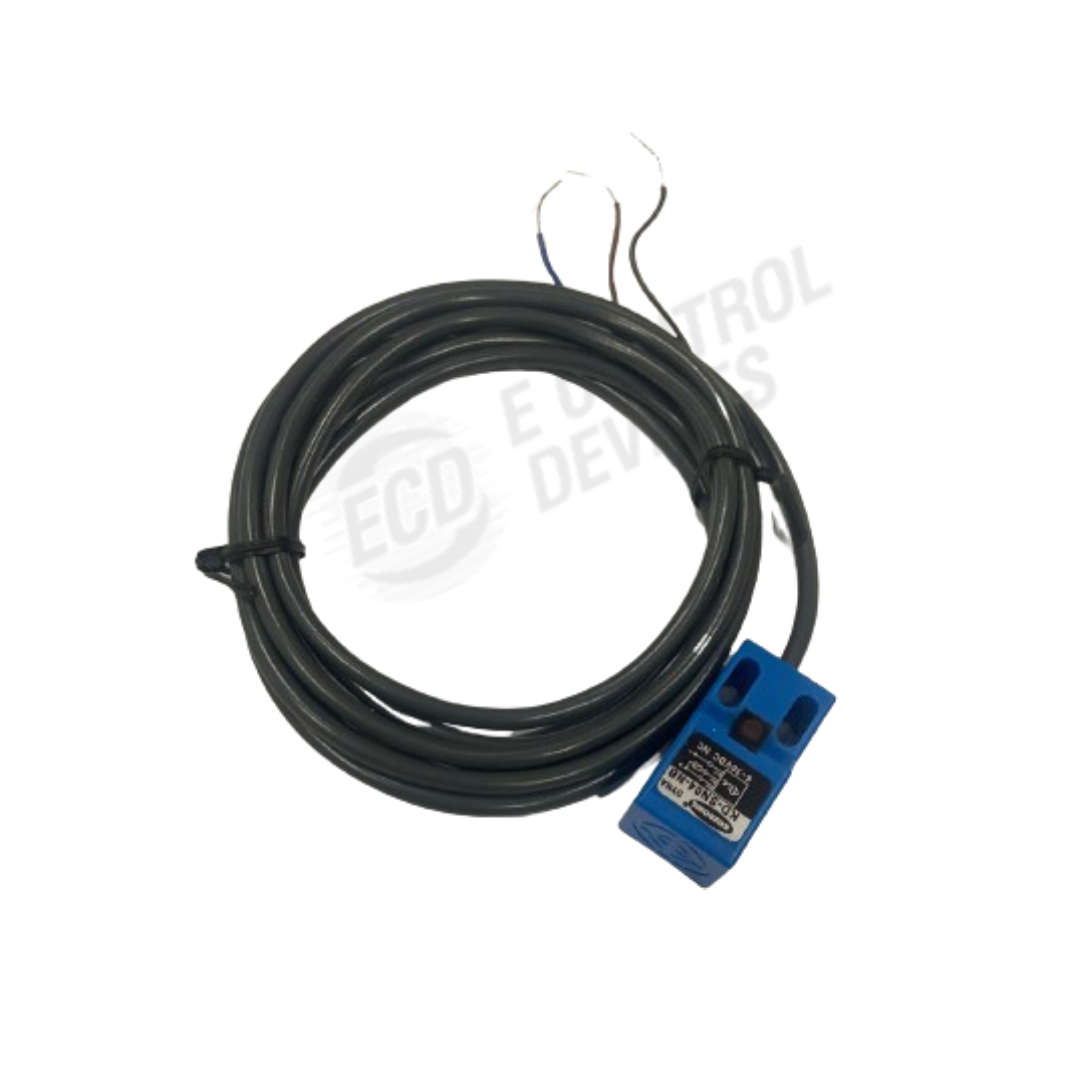

KD-SN04-NB Inductive Sensor
★★★★★
4.8 / 5
Guaranteed Safe Checkout
Experience precision like never before with the KD-SN04-NB Inductive Sensor. Boasting a 4mm sensing distance and user-friendly features, this sensor ensures seamless integration into your applications. The red LED indicator provides quick status confirmation, and with surge and reverse polarity protection, reliability is at the forefront. Versatile and easy to install, this sensor is your go-to solution for hassle-free sensing.
KD-SN04-NB Inductive Sensor - Precision and Reliability Simplified
Introducing the KD-SN04-NB Inductive Sensor by KELTRONIC DYNA, a solution crafted to bring precision and reliability to your sensing needs. This sensor, with an NPN NC output, is designed to be compact yet robust, offering exceptional performance.
Features:
- Surge and Polarity Protection: Keep your equipment safe with built-in surge and reverse polarity protection.
- Reliability: A durable design ensures a long life cycle, minimizing downtime and maintenance costs.
- Easy Installation: Designed for user-friendly installation, providing a cost-effective solution for your applications.
- LED Status Indication: The red LED indicator offers a quick visual confirmation of the sensor's operational status.
- IP67 Protection Structure: Robustness in challenging environments, protecting the sensor from dust and water.
- Versatility: Replaceable for micro switches and limit switches, offering flexibility in various applications.
| Model: | KD-SN-04-NB |
| Output: | NPN NC |
| Sensing Distance: | 4mm |
| Size: | 181836mm |
| Setting Distance: | 0-3.5mm |
| Hysteresis: | Max 10% sensing distance |
| Power Supply: | 12-24 VDC |
| Leakage Current: | Max 10 mA |
| Residual Voltage: | Max 1.0 V |
| Frequency: | 500Hz |
| Temperature Range: | -20 to +70 degrees Celsius |
| Control Output: | Max 200mA |
| Insulating Resistance: | Min 50 Mohm |
| Dielectric Strength: | 1500VAC 50/60 Hz |
| Vibration: | 1 mm Amplitude frequency of 10 to 55 Hz in each of X Y Z Direction |
| Shock: | 500 m/s2 |
| Indicator: | Operator Indicator |
| Ambient Temperature: | -25 to +70 degrees Celsius |
| Storage Temperature: | -30 to +80 degree Celsius |
| Ambient Humidity: | 35 – 95%RH |
| Protection Circuit: | Surge, reverse polarity, over current |
| Material: | Plastic |
| Cable: | 2mm |
| Protection: | IP67 |
