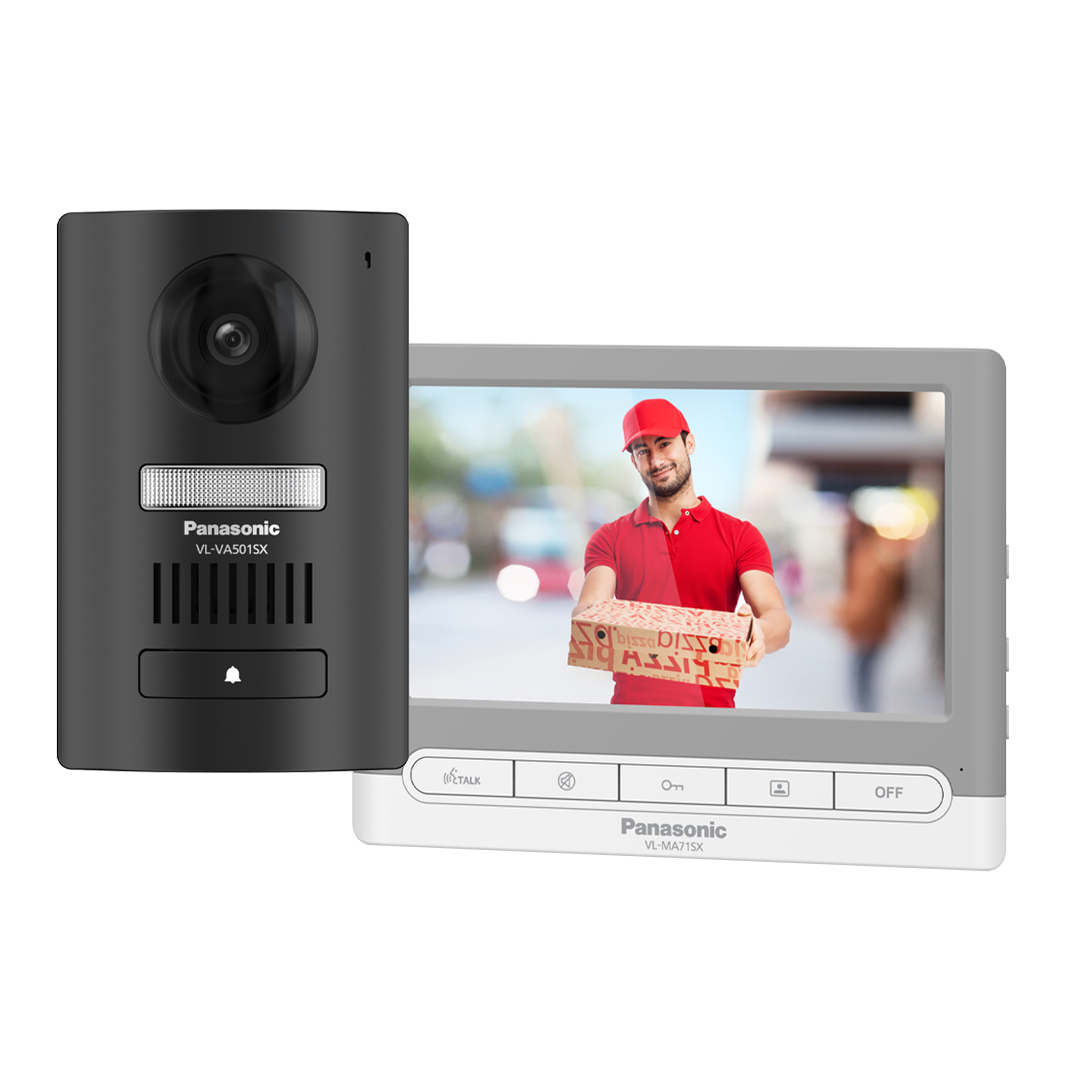

Panasonic VL-SA71 (Basic Analog Video Door Phone Kit)
★★★★★
4.8 / 5
Guaranteed Safe Checkout
Key Features
- Handsfree Video Intercom
- 7-inch Wide Color Screen
- High Definition Door Camera with 2MP Resolution
- Multi Indoor (4) & Outdoor (2) Units Supported
- Weather Proof with IP65 Rating
- Vandal Proof with IK08 Rating
- Color Night Vision with White
- Electric Lock Intergration
- Supports Analog CCTV Camera Integration
Specifications
| Model number and name | VL-MA71 | VL-VA502 |
|---|---|---|
| Main Monitor Station (Main monitor) Extension Monitor | Door Station (Doorphone) | |
| Power source | DC 14.5V 1A, 50/60 Hz | Power supplied by the main monitor |
| Power consumption | Standby: <3.0 W, Operating: <10.0 W | - |
| Dimensions (H x W x D) (Excluding protruding sections) | 140 x 190 x 22 mm | 150 x 95 x 41 mm |
| Weight | 320 g | 228 g |
| Operating environment | Ambient temperature: Approx. -20 °C to +70 °C Relative humidity (non-condensing): 10 % to 90 % | Ambient temperature: Approx. -20 °C to +70 °C Relative humidity (non-condensing): 10 % to 90 % |
| Display | 7-inch wide colour capacitive touchscreen (Approx. 17.8cm) | - |
| Monitor Resolution | 1024 x 600 | - |
| Display language | English, Arabic | - |
| Talking method | Hands-free | - |
| Viewing angle | - | Diagonally: Approx. 120˚ Horizontally: Approx. 90˚ Vertically: Approx. 66˚ |
| Internal Memory | NA | - |
| External Memory | NA | - |
| Camera Resolution | - | 1/3" CMOS with 2MP Lens |
| Installation method | Wall mount (mounting bracket supplied) | Surface mount (mounting base supplied) |
| Lock Connection Relay | - | 1 Relay (No Com NC) |
| Minimum illuminance required | - | 1 lx (within approx. 50 cm from the camera lens) |
| Lighting method | - | White LED |
| IP rating / IK rating | - | IP65 / IK08 |
