TMC-40E Electronic Liquid

TMC-40E Electronic Liquid by TMC Industries, supplied by Econtrol Devices, is a non-conductive, thermally and chemically stable electronic liquid equivalent to 3M™ FC-40. It is designed for single-phase heat transfer fluid applications, particularly within the electronics and semiconductor industry for testers, CVD, TFT manufacturing, etchers, and ion implanters. The fluid is clear, colorless, non-flammable, residue-free, and provides consistent transport properties due to its narrow boiling range, helping minimize fluid loss over time.

Equivalent to 3M™ FC-40

TMC-40E Electronic Liquid offers similar chemistry and physical properties to 3M™ FC-40. It serves as an equivalent electronic liquid for applications requiring stable thermal performance and reliable heat transfer characteristics. Its narrow boiling range helps maintain composition over time, ensuring consistent performance in demanding industrial processes.

Applications

TMC-40E Electronic Liquid is designed for use in a wide range of industrial and semiconductor applications, including:

• Dielectric Bath
• Electronic Testing
• Gross Leak Testing
• Heat Transfer
• Semiconductor Cooling
• Thermal Shock Testing

It is suitable for both single-phase and two-phase heat transfer applications used in electronics manufacturing and semiconductor processing.

Key Features

TMC-40E Electronic Liquid offers several performance features, including:

• 3rd-Party Tested, Non-Detectable PFAS under Current Guidelines
• Zero Ozone Depletion Potential (ODP)
• Low Global Warming Potential (GWP)
• High Boiling Point
• Low Surface Tension
• RoHS Compliant

These characteristics make it suitable for industrial heat transfer and electronic cooling applications.

Material Compatibility

TMC-40E fluid is compatible with most metals and plastics, with some limitations when used with elastomers.

Physical Properties

According to the technical data sheet, TMC-40E Electronic Liquid has the following physical properties:

• Physical State: Liquid
• Color: Transparent, Colorless
• Odor: None
• pH: 7
• Boiling Point: 155–160°C
• Kinematic Viscosity: 3.18 cSt
• Dynamic Viscosity: 5.8 cPs
• Vapor Pressure: 4.6 kPa (77°F)
• Flash Point: None
• Solubility in Water: 50 ppm
• Molecular Weight: 550 g/mol
• Surface Tension: 12.63 dyn/cm

Compliance

TMC-40E Electronic Liquid complies with several regulatory and environmental requirements, including:

• Not classified according to OSHA Hazard Communication Standard (29 CFR 1910.1200)
• Not a marine pollutant under transport regulations
• Listed on the U.S. Toxic Substances Control Act (TSCA) Inventory
• EU RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU
• Complies with EU Regulation 1907/2006 REACH

Packaging Options

TMC-40E Electronic Liquid is available in the following packaging sizes:

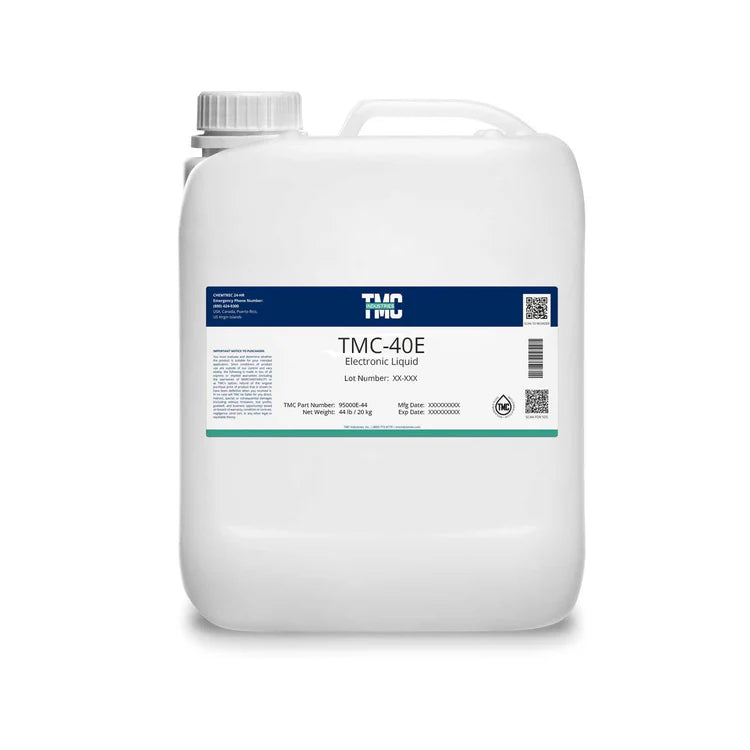

• 1 Gallon Jug (11 lb / 5 kg)
• 5 Gallon Pail (44 lb / 20 kg)
• 55 Gallon Drum (550 lb / 250 kg)
• Sample (2.2 lb / 1 kg)
• 275 Gallon Tote (Available Upon Request)

Shelf Life and Storage

The product has a shelf life of 5 years from the date of manufacture when stored in its original packaging under normal storage conditions. TMC Industries will re-certify the material every five years for up to 20 years.

Disposal and Recycling

TMC-40E Electronic Liquid can be recycled and reused through the TMC Industries reclamation program. Used fluorinated fluids can be restored to like-new condition, helping reduce disposal costs while protecting the environment. Reclaimed fluids are tested to meet new product specifications, supplied clear and odorless, and include a Certificate of Analysis with every order. TMC Industries also offers a 100% satisfaction guarantee on reclaimed fluids supported by a no-questions-asked refund policy.
