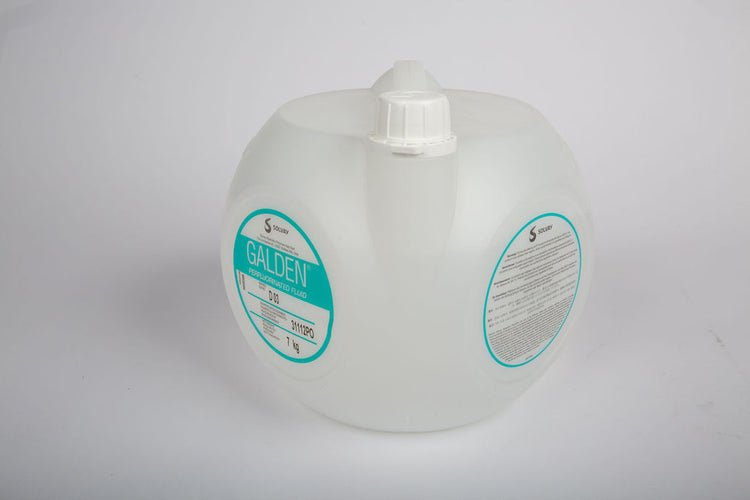

GALDEN D03 PFPE Electronic Testing Fluid
Guaranteed Safe Checkout
Econtrol Devices supplies GALDEN D03 PFPE fluid for industrial applications, providing solutions to meet diverse industrial requirements. GALDEN D03 is recommended for electronic reliability testing, including thermal shock testing and hermetic seal testing in non-military applications.
GALDEN D03 is a colourless, odourless, non-flammable liquid made from perfluorinated polyethers. Its dielectric properties, chemical and thermal stability, and heat transfer performance make it suitable for electronic testing applications.
Thermal Shock Testing
GALDEN D03 can be used as a single fluid for both hot and cold baths in non-military thermal shock testing. This testing process checks the resistance of electronic devices to extreme temperature changes by alternately immersing them in liquids maintained at different temperatures.
Using a single fluid for both baths helps reduce fluid consumption and equipment downtime, eliminates cross-contamination between different bath fluids, and reduces inventory to one product.
Hermetic Seal Testing
GALDEN D03 is also used as an indicator fluid for non-military hermetic seal testing. This process checks the sealing of electronic devices to help prevent moisture penetration that could affect their electrical performance.
Its high boiling point and low vapour pressure at the test temperature help reduce evaporative losses and fluid consumption.
Key Features
- PFPE fluid for electronic reliability testing.
- Suitable for non-military thermal shock and hermetic seal testing.
- Good heat transfer performance.
- High dielectric strength and electrical resistivity.
- Excellent chemical and thermal stability.
- Colourless, odourless and non-flammable.
- Insoluble in water.
Typical Technical Properties
| Property | Typical Value |
|---|---|
| Boiling point | 203°C |
| Pour point | −85°C |
| Density at 25°C | 1.79 g/cm³ |
| Density at −54°C | 1.96 g/cm³ |
| Kinematic viscosity at 25°C | 2.4 cSt |
| Kinematic viscosity at −54°C | 160 cSt |
| Specific heat at 25°C | 973 J/(kg·°C) |
| Thermal conductivity at 25°C | 0.07 W/(m·°C) |
| Coefficient of expansion | 0.0011 cm³/(cm³·°C) |
| Surface tension | 16 dyne/cm |
| Dielectric strength | 40 kV at a 2.54 mm gap |
| Dielectric constant | 2.1 |
| Volume resistivity | 5 × 10¹⁵ Ω·cm |
| Average molecular weight | 870 amu |
These are typical properties and are not intended for specification purposes.
Industrial Use and Handling
GALDEN D03 is intended for industrial use only. Consult the Safety Data Sheet before use and follow its handling and storage guidance. Avoid overheating and keep the product away from flames, as thermal decomposition can release hazardous gases.
Contact Econtrol Devices for GALDEN D03 product enquiries and purchasing requirements.
