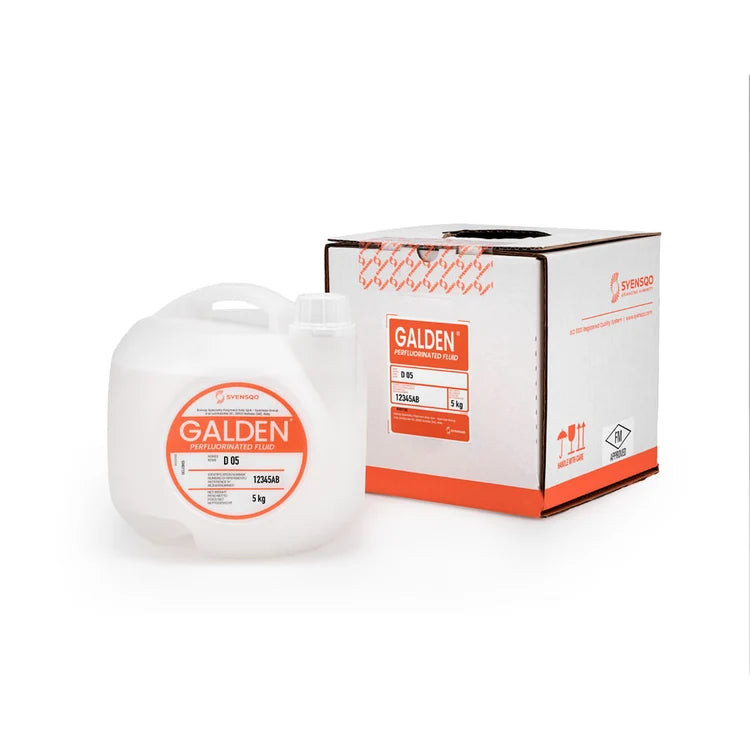

GALDEN D05 PFPE Electronic Reliability Testing Fluid
Guaranteed Safe Checkout
GALDEN D05 by Syensqo is a perfluoropolyether (PFPE) electronic fluid used in electronic reliability testing and industrial heat transfer applications. Econtrol Devices is a trusted distributor, supplying GALDEN D05 for industrial use.
This colourless, odourless liquid combines dielectric properties with chemical and thermal stability. GALDEN D05 is used as the hot-bath fluid in dual-fluid thermal shock testing. Its typical boiling point is 230°C, while its pour point is −77°C.
Electronic Reliability and Thermal Shock Testing
Thermal shock testing evaluates how electronic devices withstand extreme temperature changes. During the test, devices are alternately immersed in liquids maintained at two different temperatures.
GALDEN D05 serves as the hot-bath fluid in this dual-fluid arrangement. The supplied technical brochure lists D05 for MIL STD 883 test conditions D and F, both using a hot-step temperature of 200°C. For condition D, the listed cold-bath fluid is GALDEN® DET. For condition F, the cold-bath medium is liquid nitrogen.
These listed test conditions describe specific thermal shock arrangements. The product’s boiling point and pour point are physical properties and should not be interpreted as a guaranteed operating temperature range.
Key Features
· PFPE composition: GALDEN D05 consists of per fluorinated polyethers.
· Dielectric performance: It has a typical dielectric strength of 40 kV measured across a 2.54 mm gap.
· Electrical resistivity: Its typical volume resistivity is 5 × 10¹⁵ Ω·cm.
· Heat transfer use: The Safety Data Sheet identifies the product as an industrial heat transfer medium.
· Non-flammable liquid: The Safety Data Sheet identifies GALDEN D05 as non-flammable.
· Appearance and solubility: It is colourless, odourless and insoluble in water.
Typical Technical Properties
|
Property |
Typical Value |
|
Boiling point |
230°C |
|
Pour point |
−77°C |
|
Density at 25°C |
1.82 g/cm³ |
|
Density at −54°C |
1.98 g/cm³ |
|
Kinematic viscosity at 25°C |
4.4 cSt |
|
Specific heat at 25°C |
973 J/(kg·°C) |
|
Thermal conductivity at 25°C |
0.07 W/(m·°C) |
|
Coefficient of expansion |
0.0011 cm³/(cm³·°C) |
|
Surface tension |
17 dyne/cm |
|
Dielectric strength |
40 kV, 2.54 mm gap |
|
Dielectric constant |
2.1 |
|
Volume resistivity |
5 × 10¹⁵ Ω·cm |
|
Average molecular weight |
1,020 amu |
The values above are typical properties provided in the technical brochure and are not intended for specification purposes.
Handling and Storage
GALDEN D05 is intended for industrial use only. Handle the fluid with adequate ventilation and appropriate personal protective equipment. The Safety Data Sheet recommends safety glasses with side shields and suitable protective gloves, with additional protection where splashing is likely.
Avoid overheating to prevent thermal decomposition. Keep the product away from heat and ignition sources, and store it in properly labeled containers away from incompatible materials. Clean and dry piping circuits and equipment before operations.
The product should not be released into the environment or allowed to enter drains, watercourses or soil. Consult the Safety Data Sheet for complete handling, storage and disposal instructions.
Enquire with Econtrol Devices
Contact Econtrol Devices, a trusted distributor, for enquiries about Syensqo GALDEN D05 PFPE Electronic Reliability Testing Fluid for your industrial requirements.
