TMC-40 Electronic Liquid
Guaranteed Safe Checkout
Econtrol Devices is an authorised distributor of TMC Industries TMC-40 Electronic Liquid, a non-conductive, thermally and chemically stable heat transfer fluid designed for electronic and semiconductor applications.
TMC-40 Electronic Liquid is a direct replacement for 3M™ FC-40. This clear, colourless, non-flammable and residue-free liquid is suitable for single-phase and two-phase heat transfer applications. It is used in electronic testing, semiconductor cooling, dielectric baths, gross leak testing and thermal shock testing.
With a liquid operating range of -57°C to 165°C, TMC-40 offers thermal and chemical stability for heat transfer applications. Its narrow boiling range helps minimise changes in fluid composition over time, reducing fluid loss and maintaining consistent transport properties.
Key Features of TMC-40 Electronic Liquid
-
Non-Conductive Fluid: Suitable for electronic and semiconductor heat transfer applications.
-
Thermal and Chemical Stability: Designed for applications requiring stable heat transfer properties.
-
Wide Liquid Range: Operates in the liquid phase from -57°C to 165°C.
-
Non-Flammable: Features no flash point.
-
Residue-Free: Clear, colourless liquid with residue-free properties.
-
High Boiling Point: Boiling point of 165°C.
-
Material Compatibility: Compatible with most metals and plastics, with some limitations involving elastomers.
-
Zero Ozone Depletion Potential: ODP value of 0.0.
Applications of TMC-40 Electronic Liquid
TMC-40 Electronic Liquid is used in various electronic and industrial applications, including:
-
Dielectric Bath
-
Electronic Testing
-
Gross Leak Testing
-
Heat Transfer
-
Semiconductor Cooling
-
Thermal Shock Testing
-
Semiconductor Etchers
-
Ion Implanters
-
CVD and TFT Manufacturing
Technical Specifications
| Property | TMC-40 Value |
|---|---|
| Brand | TMC Industries |
| Product Name | TMC-40 Electronic Liquid |
| Product Number | 95000 |
| Form | Liquid |
| Colour | Colourless |
| Boiling Point | 165°C |
| Freeze/Pour Point | -57°C |
| Liquid Density | 1855 kg/m³ |
| Kinematic Viscosity | 2.2 cSt |
| Thermal Conductivity | 0.065 W/m-K |
| Specific Heat | 1100 J/kg-K |
| Dielectric Strength | >40 kV |
| Average Molecular Weight | 650 g/mol |
| Ozone Depletion Potential (ODP) | 0.0 |
| Flash Point | None |
Technical values are based on the TMC Industries Technical Data Sheet. Values are at 25°C unless otherwise specified and are not intended for specification purposes.
Available Packaging Sizes
TMC-40 Electronic Liquid is listed in the following packaging options:
-
Sample: 1 kg / 0.54 L
-

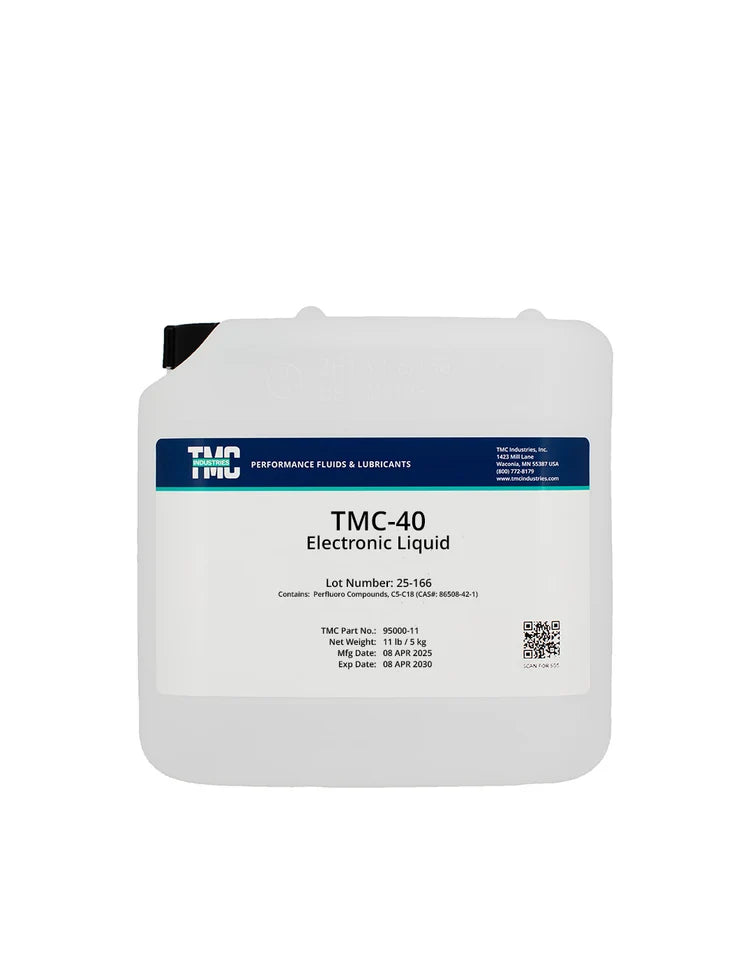

Jug: 5 kg / 2.7 L
-

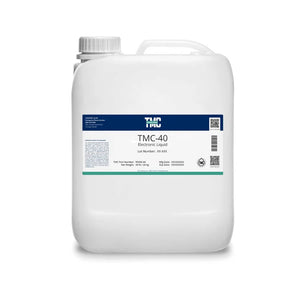

Pail: 20 kg / 10.8 L
-

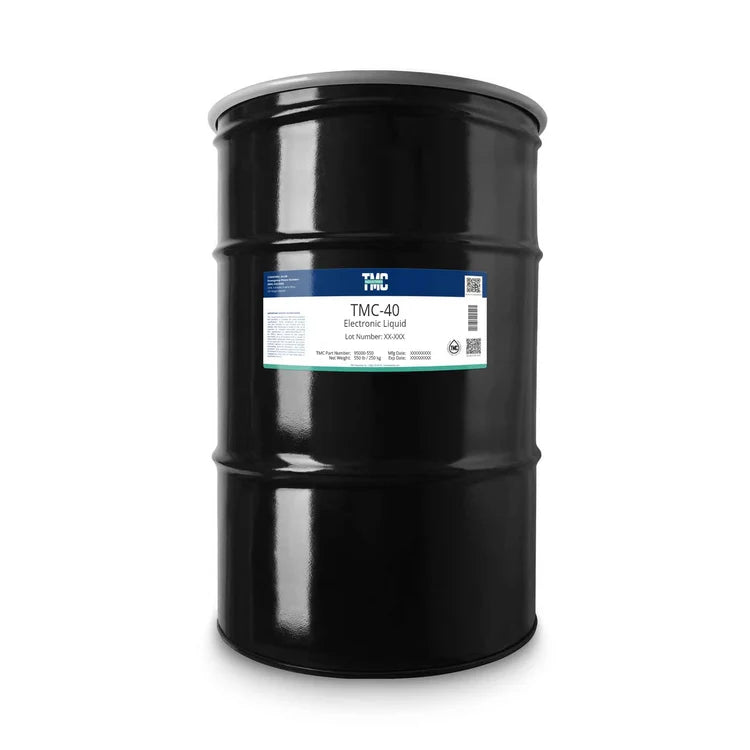

Drum: 250 kg / 134.8 L
-
Tote: Available upon request
Shelf Life and Storage
TMC-40 Electronic Liquid has a shelf life of 5 years from the date of manufacture when stored in its original packaging under normal storage conditions.
The Safety Data Sheet recommends keeping containers tightly closed in a dry, cool and well-ventilated area.
TMC-40 Electronic Liquid Distributor – Econtrol Devices
Econtrol Devices is an authorised distributor of TMC Industries products, including TMC-40 Electronic Liquid.
For enquiries regarding TMC-40 Electronic Liquid, technical specifications and packaging options, contact Econtrol Devices.
Contact Econtrol Devices for TMC-40 Electronic Liquid enquiries.
