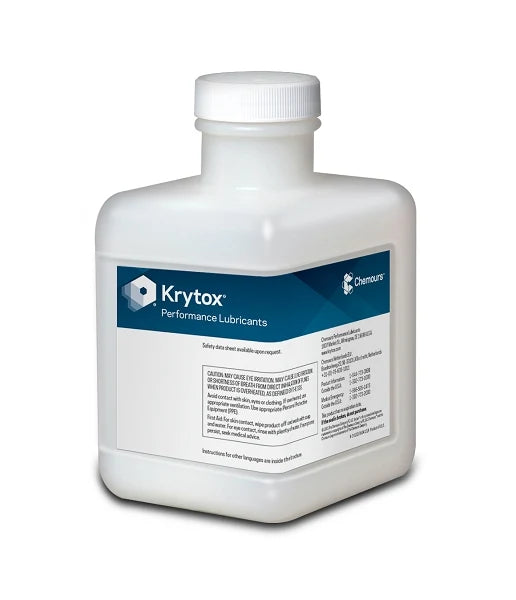

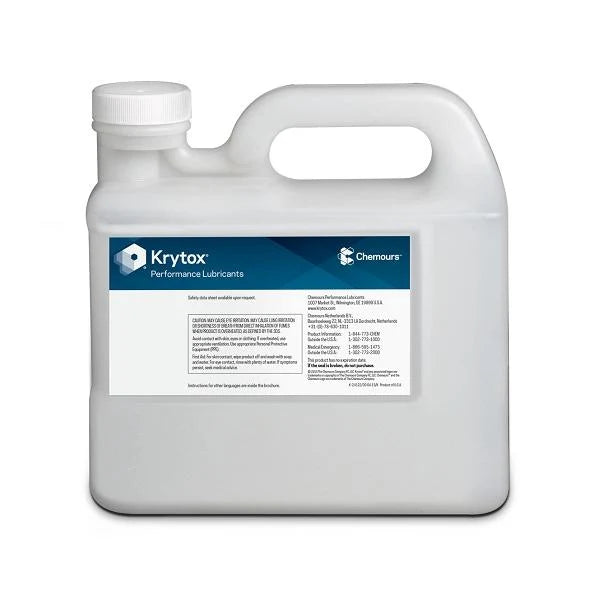

KRYTOX 1514 Vacuum Pump Fluid

KRYTOX 1514 Vacuum Pump Fluid by TMC Industries

The KRYTOX 1514 Vacuum Pump Fluid from TMC Industries, supplied by Econtrol Devices, is designed for applications where conventional vacuum pump oils create safety, waste disposal, and maintenance challenges. This vacuum pump fluid is nonflammable, helping eliminate the chance of fire in pumps, and is non-reactive, making it safe for use in oxygen systems. It can replace competitive PFPE fluids as well as other types of vacuum pump fluids used in industrial applications. Krytox fluids do not contain acetal groups that are susceptible to attack by Lewis acids, providing superior stability as a vacuum pump fluid. They are precisely distilled to deliver low vapor pressures and superior performance while also being recyclable.

KRYTOX 1514 Vacuum Pump Fluid is suitable for applications where low vapor pressure and reliable operation are essential. Its precisely distilled formulation supports high-performance vacuum pump operation and is intended for demanding industrial environments. The product is also recyclable, helping support fluid recovery and reuse programs.

Applications

KRYTOX 1514 Vacuum Pump Fluid is recommended for a variety of industrial applications, including:

• Vacuum pumps
• Plasma and CVD operations
• Semiconductor manufacturing environments where process chemicals can attack conventional lubricants
• Vacuum system valves, seals, bearings, and connectors where low vapor pressure, low outgassing, and contamination control are important
• Edwards Root blowers EH250–EH4200, QMB Series, and HV Series
• Replacement for Fomblin 14/6, Leybold HE1600, Halocarbon 56, and Castrol Braycote 1723/1723+

Key Features

KRYTOX 1514 Vacuum Pump Fluid offers several important performance characteristics, including:

• Nonflammable formulation that eliminates the chance of fire in pumps.
• Non-reactive and safe for use in oxygen systems.
• Can replace competitive PFPE fluids and other vacuum pump fluids.
• Does not contain acetal groups susceptible to Lewis acid attack.
• Superior stability as a vacuum pump fluid.
• Precisely distilled to provide low vapor pressure.
• Recyclable for reuse after reclamation.
• Provides superior performance in demanding vacuum applications.

Material Compatibility

KRYTOX VPF fluids are inert and non-reactive to elastomers, plastics, and metals. Initial testing has shown no problems with Teflon™ fluoroplastic resin, Kalrez® perfluoroelastomer parts, Viton™ fluoroelastomer, nitrile, and silicone rubbers. The performance of soluble additives may degrade at temperatures above 182°C (360°F) over long periods.

Product Properties

KRYTOX 1514 Vacuum Pump Fluid has the following typical properties:

• Kinematic Viscosity @ 20°C: 140 cSt
• Kinematic Viscosity @ 100°C: 7.2 cSt
• Density @ 20°C: 1.89 g/cc
• Density @ 100°C: 1.74 g/cc
• Pour Point: –54°C (–65°F)
• Food Contact Approval: NSF H-1 / No

Disposal and Recycling

KRYTOX 1514 Vacuum Pump Fluid can be reclaimed and reused. TMC Industries provides reclamation services that restore used fluorinated fluids and oils to like-new condition. The reclaimed fluids are tested to meet new product specifications, supplied clear and odorless, and include a Certificate of Analysis with every order. TMC Industries also backs its reclaimed fluids with a 100% satisfaction guarantee and a no-questions-asked refund policy.
