TMC-19 Vacuum Pump Fluid
Guaranteed Safe Checkout
The TMC-19 Vacuum Pump Fluid from TMC Industries, supplied by Econtrol Devices, is a molecularly distilled, hydrotreated paraffinic oil designed for use in mechanical vacuum pumps. It is a replacement for Inland 19 Oil and supports vapor pressures down to 1 × 10⁻⁵ Torr. For applications requiring a deeper vacuum, TMC-20 is identified as a viable option.
Manufactured using a molecular distillation process, TMC-19 Vacuum Pump Fluid is formulated to deliver reliable lubrication and stable vacuum pump performance. The product features double vacuum distillation, excellent lubricating qualities, reduced backstreaming, and excellent vapor pressure characteristics. These properties make it suitable for a range of professional vacuum pump applications while maintaining dependable operating performance.
TMC-19 has also been evaluated in an independent laboratory using a modified RBOT D-2272 test to determine oxidative stability compared to Inland 19. According to the published test results, TMC-19 lasted longer while exhibiting lower viscosity change and lower sediment weight during testing.
Applications
TMC-19 Vacuum Pump Fluid is suitable for the following applications:
- Mass Spectrometry
- Electron Microscopy
- Thin Film Sputtering
- UHV Systems
- Freeze Dry Systems
- Non-Corrosive General Applications
Note: Not recommended for oxygen and highly reactive gas loads.
Key Features
- Molecularly distilled, hydrotreated paraffinic oil.
- Replacement for Inland 19 Oil.
- Supports vapor pressures down to 1 × 10⁻⁵ Torr.
- Double vacuum distillation.
- Excellent lubricating qualities.
- Reduced backstreaming.
- Excellent vapor pressure characteristics.
- Independent RBOT D-2272 performance testing compared with Inland 19.
Performance Comparison
| Performance Test | TMC-19 | Inland 19 |
|---|---|---|
| Total Minutes to Destruction | 40 | 35 |
| Viscosity Change @ 40°C | +9.18% | +13.98% |
| Sediment Weight | 31.7 mg | 41.3 mg |
Material Compatibility
TMC-19 Vacuum Pump Fluid is reactive or incompatible with oxidizing materials.
Technical Specifications
| Property | Unit | Value |
|---|---|---|
| Vapor Pressure | Torr | 1 × 10⁻⁵ |
| Viscosity @ 40°C | cSt | 59 |
| Pour Point | °C | -18 |
| Specific Gravity @ 22°C | g/mL | 0.86 |
| Flash Point (C.O.C.) | °C / °F | 235 / 455 |
| Fire Point (C.O.C.) | °C / °F | 260 / 500 |
All values are typical and measured at 25°C unless otherwise specified.
Packaging
TMC-19 Vacuum Pump Fluid is available in the following packaging options:

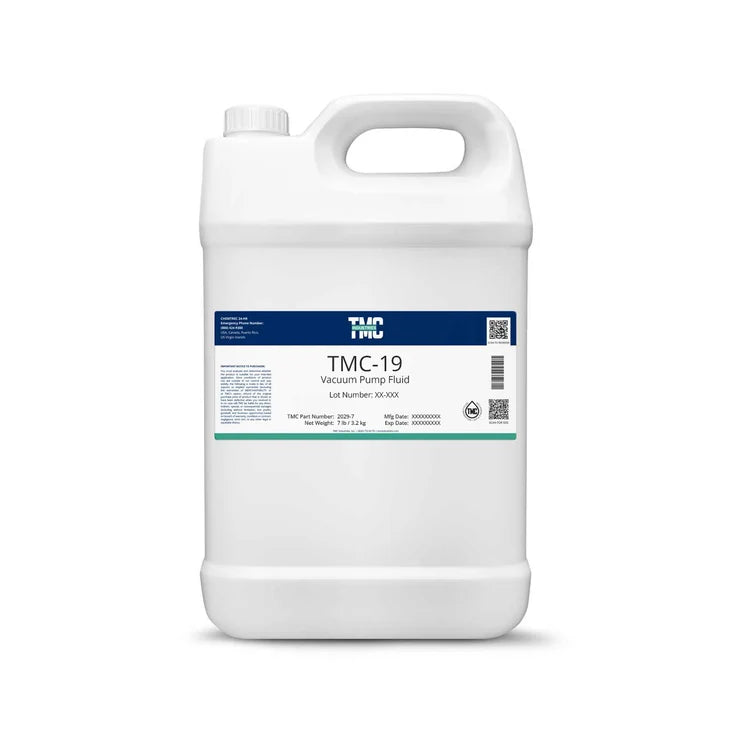

- 1 Gallon Jug – 7 lb / 3.2 kg
- 5 Gallon Pail – 36 lb / 16.3 kg
- 55 Gallon Drum – 395 lb / 179 kg
- 275 Gallon Tote – Available Upon Request
Shelf Life & Storage
TMC-19 has a shelf life of 5 years from the date of manufacture when stored in the original packaging under normal storage conditions. TMC Industries will re-certify the material every five years for up to twenty years.
Disposal & Recycling
This fluid can be recycled and reused. TMC Industries offers a reclamation service that restores used fluids to like-new condition and can help reduce replacement fluid costs. Reclaimed fluids are tested to meet new product specifications, supplied with a Certificate of Analysis, and backed by a 100% satisfaction guarantee with a no-questions-asked refund policy
