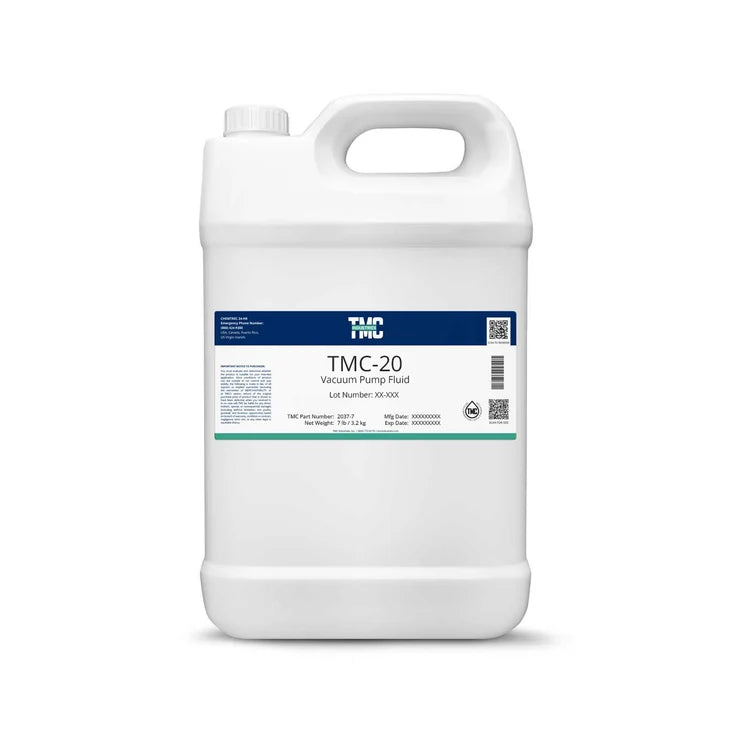

The TMC-20 Vacuum Pump Fluid from TMC Industries, supplied by Econtrol Devices, is a high-performance vacuum pump fluid designed as an alternative to Invoil 20 Oil. TMC-20 is a hydrotreated paraffinic oil that is two-pass distilled through a molecular distillation process to remove light end fractions. The fluid is highly saturated and contains less than 0.01% sulfur, providing exceptional long service life and vacuum performance while reducing the build-up of varnish and carbon deposits on internal components.
Developed for professional vacuum applications, TMC-20 Vacuum Pump Fluid delivers reliable lubrication and stable vacuum system performance. Its formulation offers higher viscosity index for superior lubrication, greater resistance to thermal decomposition, higher molecular weight for reduced backstreaming, reduced aromatic content, and extremely low sulfur content. These characteristics help maintain consistent operation in demanding industrial vacuum systems.
Applications
TMC-20 Vacuum Pump Fluid is recommended for use in:
Vacuum Pumps
Diffusion Pumps
Leybold Blowers
Note: TMC-20 is not recommended for oxygen and highly reactive gas loads.
Key Features
TMC-20 Vacuum Pump Fluid provides the following features:
Hydrotreated paraffinic oil formulation.
Two-pass molecular distillation process to remove light end fractions.
Highly saturated formulation with less than 0.01% sulfur.
Exceptional long life and vacuum performance.
Reduced build-up of varnish and carbon deposits on internal components.
Higher Viscosity Index for superior lubrication.
Greater resistance to thermal decomposition.
Higher molecular weight for reduced backstreaming.
Reduced aromatic content.
Extremely low sulfur content.
Material Compatibility
TMC-20 Vacuum Pump Fluid is reactive or incompatible with oxidizing materials.
Technical Specifications
Property
Unit
Value
Vapor Pressure
Torr
1 × 10⁻⁶
Viscosity @ 40°C
cSt
62
Pour Point
°C
-15
Specific Gravity @ 22°C
g/mL
0.87
Flash Point (C.O.C.)
°C / °F
245 / 473
Fire Point (C.O.C.)
°C / °F
271 / 520
All values are typical and measured at 25°C unless otherwise specified.
Packaging Options
TMC-20 Vacuum Pump Fluid is available in the following package sizes:
1 Gallon Jug – 7 lb / 3.2 kg
5 Gallon Pail – 36 lb / 16.3 kg
55 Gallon Drum – 395 lb / 179 kg
275 Gallon Tote – Available Upon Request
Shelf Life & Storage
TMC-20 has a shelf life of five years from the date of manufacture when stored in its original packaging under normal storage conditions. TMC Industries also re-certifies the material every five years for up to twenty years.
Disposal & Recycling
TMC-20 Vacuum Pump Fluid can be recycled and reused. TMC Industries provides a reclamation service that restores used fluids to like-new condition, helping reduce disposal costs and replacement expenses. Reclaimed fluids are tested to meet new product specifications, supplied clear and odorless, and include a Certificate of Analysis with every order. TMC Industries also offers a 100% satisfaction guarantee on reclaimed fluids, backed by a no-questions-asked refund policy.
