TMC-1230 Fire Protection Fluid

Econtrol Devices, an authorized distributor of TMC Industries products, offers TMC-1230 Fire Protection Fluid, a waterless clean agent designed for fire suppression applications involving sensitive electronic equipment and valuable materials.

TMC-1230 is a direct replacement for 3M™ Novec™ 1230 (FK-5-1-12). It is a non-corrosive, electrically non-conductive fire extinguishing fluid that vaporizes quickly when released. The fluid is stored as a liquid and discharged as a gas, helping extinguish fires without leaving damaging residue.

TMC-1230 is suitable for clean agent fire protection applications where non-flammability, protection of sensitive equipment, and environmental properties are important considerations.

Key Features of TMC-1230 Fire Protection Fluid

• Waterless Fire Suppression: A clean agent that does not depend on water to extinguish fires.
• Residue-Free: Does not leave damaging residue after discharge.
• Electrically Non-Conductive: Helps protect sensitive and energized electronic equipment.
• Rapid Vaporization: Stored as a liquid and discharged as a gas.
• Non-Corrosive: Designed for fire suppression around sensitive equipment.
• 3M™ Novec™ 1230 Replacement: A chemically identical replacement with the same properties listed in the manufacturer's comparison table.
• Global Warming Potential (GWP): 1
• Ozone Depletion Potential (ODP): 0

Applications of TMC-1230 Fire Protection Fluid

TMC-1230 is used for clean agent fire protection in environments containing sensitive equipment, electronic systems, and valuable materials.

1. Data Centers and Server Rooms

TMC-1230 provides waterless fire suppression for environments containing servers and sensitive electronic systems. Its electrically non-conductive and residue-free properties help protect equipment during fire extinguishing.

2. Telecommunications and Broadcast Facilities

The fluid is suitable for fire protection applications involving telecommunications and broadcasting equipment where water-based fire suppression may cause damage.

3. Hospitals and Laboratories

TMC-1230 is listed for fire suppression applications in hospitals and laboratories.

4. Clean Rooms and Semiconductor Manufacturing

Used in clean agent fire protection applications for clean rooms and semiconductor manufacturing facilities.

5. Military and Marine Fire Suppression Systems

TMC-1230 is listed for fire suppression systems used in military and marine environments.

6. Museums, Archives, and Libraries

Its waterless and residue-free properties make it suitable for protecting documents, collections, and valuable materials from fire suppression residue.

Technical Specifications

Values are taken from the manufacturer's Technical Data Sheet. All values are reported at 25°C unless otherwise specified. The data is not intended for specification purposes.

Fire Extinguishing Performance

TMC-1230 is designed for fire suppression applications involving Class A, B, and C fires, as described in the manufacturer’s Technical Data Sheet.

The manufacturer reports the following extinguishing concentrations:

TMC Industries states that TMC-1230 can extinguish fires in seconds and does not leave residue after discharge.

Material Compatibility

According to manufacturer testing, TMC-1230 has good compatibility with several rubber and polymer materials.

Compatibility Rating:

• 1 – No Effect
• 2 – Limited Effect
• 3 – Severe Damage

Incompatible Materials: Strong acids, strong bases, and strong oxidizing agents.

Compliance and Standards

The manufacturer lists the following standards and certifications for TMC-1230:

• FM Global: Fixed Extinguishing Systems, Clean Extinguishing Agents
• UL Certification: ANSI/UL 2166 – Halocarbon Clean Agent Extinguishing Systems
• ISO 14520
• NFPA 2001

According to TMC Industries, each shipment includes a Certificate of Analysis confirming testing against TMC internal standards and the referenced NFPA 2001 requirements.

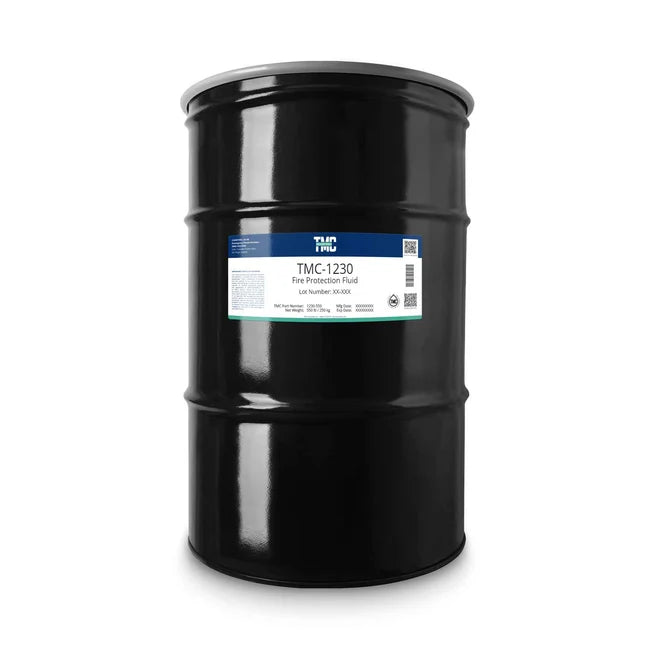

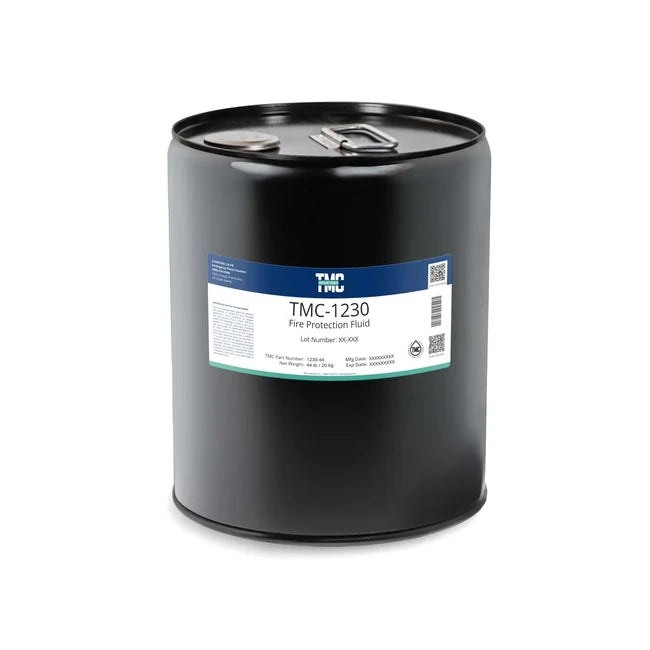

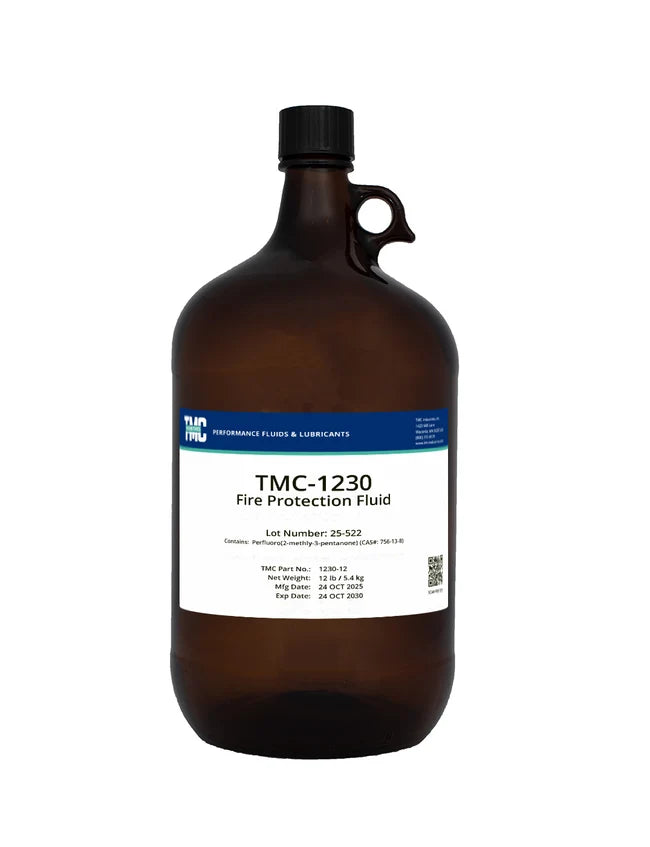

Available Packaging Sizes

TMC-1230 Fire Protection Fluid is listed in the following packaging options:

Shelf Life and Storage

TMC-1230 has a shelf life of 5 years from the date of manufacture when stored in its original packaging under normal conditions.

According to TMC Industries, the material can be re-certified every 5 years for up to 20 years.

For proper storage and handling:

• Store in a cool, dry, well-ventilated location.
• Keep containers tightly closed.
• Protect containers from sunlight and ultraviolet light.
• Keep opened containers carefully resealed and upright.
• Keep away from strong acids, strong bases, and strong oxidizing agents.
• Follow the manufacturer's current Safety Data Sheet for handling precautions.

Recycling and Disposal

TMC-1230 Fire Protection Fluid can be recycled and reused.

TMC Industries offers a reclamation service for used fluorinated fluids. According to the manufacturer, reclaimed fluids are tested to meet new product specifications, and a Certificate of Analysis is issued with each reclaimed-fluid order.

Used material can be reclaimed by the manufacturer or disposed of at an approved facility in accordance with applicable local regulations.

TMC-1230 Fire Protection Fluid – Authorized Distributor

Econtrol Devices is an authorized distributor of TMC Industries products, including TMC-1230 Fire Protection Fluid.

For information about TMC-1230, technical specifications, packaging options, and product quotations, contact Econtrol Devices.

Safety Information: TMC-1230 is restricted to professional users. Before handling or using the product, review the manufacturer's current Safety Data Sheet and product label, including all relevant storage, handling, exposure-control, and disposal precautions.
