TMC-7200 Engineered Fluid

Econtrol Devices, an authorized distributor of TMC Industries products, offers TMC-7200 Engineered Fluid, a fluorinated engineered fluid designed for industrial cleaning, vapor degreasing, and heat transfer applications.

TMC-7200 is a miscible, drop-in replacement for 3M™ Novec™ 7200. It is a hydrofluoroether (HFE) solvent containing both structural isomers and is formulated for use in applications requiring low surface tension, low viscosity, and thermal and chemical stability.

The fluid is suitable for vapor degreasing, cold cleaning, specialty solvent applications, and heat transfer processes. According to TMC Industries, its boiling point is higher than that of most CFCs, HCFCs, and HFCs, helping reduce evaporative losses.

Key Features of TMC-7200 Engineered Fluid

• 3M™ Novec™ 7200 Replacement: A miscible, drop-in alternative with comparable physical properties.
• Low Surface Tension: Suitable for vapor degreasing and cold cleaning applications.
• Low Viscosity: Designed for industrial cleaning and specialty solvent applications.
• Thermal and Chemical Stability: Suitable for cleaning, heat transfer, and other industrial uses.
• Non-Flammable: The manufacturer lists TMC-7200 as non-flammable and reports no flash point.
• Boiling Point: 76°C.
• Zero Ozone Depletion Potential: ODP value of 0.0.
• Global Warming Potential: GWP value of 59.
• RoHS Compliant: Listed as RoHS compliant in the manufacturer's Technical Data Sheet.
• Reclaimable Fluid: Can be recycled and reclaimed by TMC Industries.

Applications of TMC-7200 Engineered Fluid

TMC-7200 is used for several industrial cleaning, solvent, and heat transfer applications.

1. Vapor Degreasing

TMC-7200 is suitable for vapor degreasing and rinsing applications. Its low surface tension and low viscosity make it useful for these cleaning processes.

2. Cold Cleaning

The fluid is used as a cold cleaner for applications including flexible circuits and wipe cleaning.

3. Industrial Cleaning and Rinsing

TMC-7200 is used for light-duty cleaning involving particulates, fluorolubes, light oils, and fluoropolymers.

4. Heat Transfer Applications

The manufacturer lists TMC-7200 for industrial heat transfer applications.

5. Lubricant Carrier

TMC-7200 is used as a lubricant carrier for:

• Fluorocarbons
• Hydrocarbons
• Silicones

6. Specialty Solvent Applications

The fluid is also listed for use as a:

• Specialty solvent
• Dispersion medium
• Reaction medium
• Extraction solvent

7. Replacement Fluid Applications

TMC-7200 is listed as a replacement agent for CFCs, HCFCs, HFCs, and PFCs.

Technical Specifications

Technical values are taken from the manufacturer's Technical Data Sheet. All values are reported at 25°C unless otherwise specified and are not intended for specification purposes.

Material Compatibility

TMC-7200 Engineered Fluid is compatible with most metals and hard polymers listed in the manufacturer documentation.

Compatible Metals

• Aluminum
• Copper
• Carbon Steel
• 302 Stainless Steel
• Brass
• Molybdenum
• Tantalum
• Tungsten
• Cu/Be Alloy C172
• Mg Alloy AZ32B

Compatible Plastics

• Acrylic (PMMA)
• Polyethylene
• Polypropylene
• Polycarbonate
• Polyester
• Epoxy
• PET
• Phenolic
• ABS

Compatible Elastomers

• Butyl Rubber
• Natural Rubber
• Nitrile Rubber
• EPDM

Material Compatibility Note: Soft and elastomeric materials should be limited to compounds containing the least amount of extractable plasticizer. The manufacturer notes that prolonged exposure may cause absorption or swelling in certain fluorinated plastics and elastomers, including PTFE, FFKM, and FKM types. Silicone rubber may also absorb the fluid and swell. Some surface oxidation of copper was observed during testing.

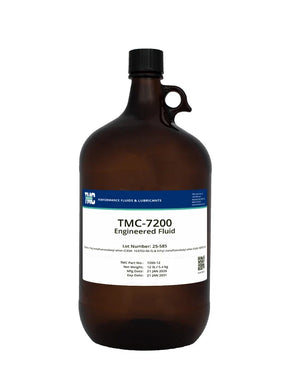

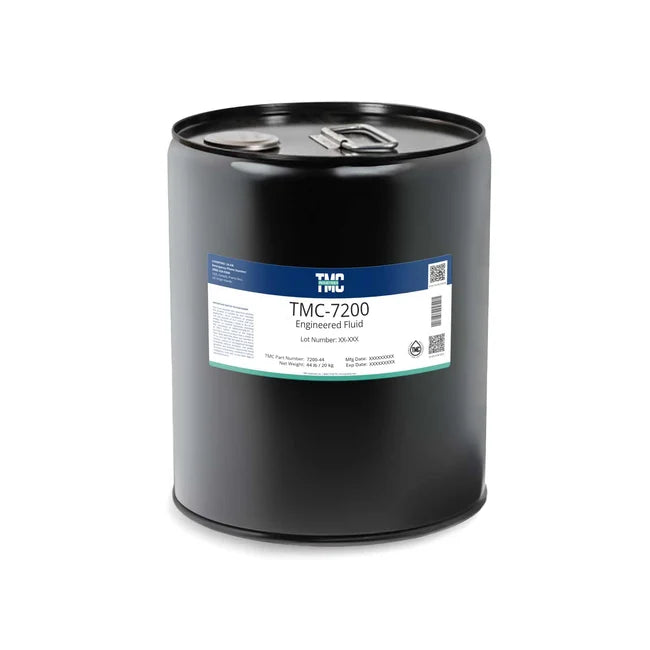

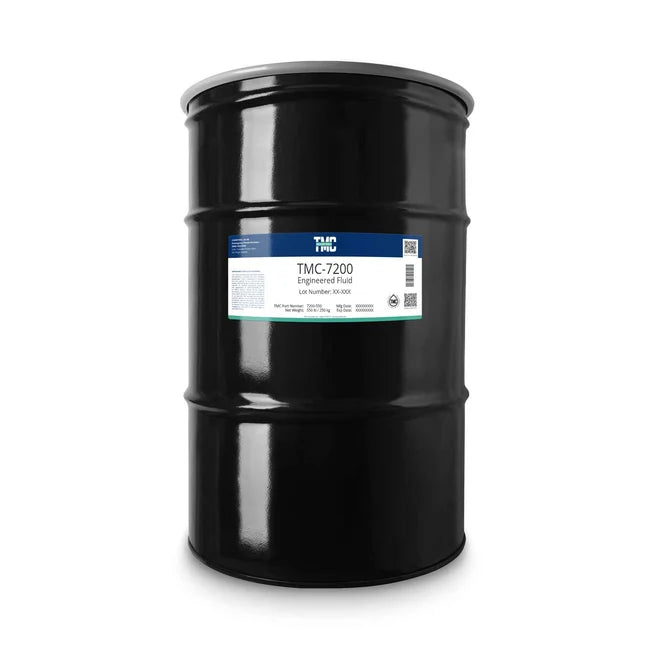

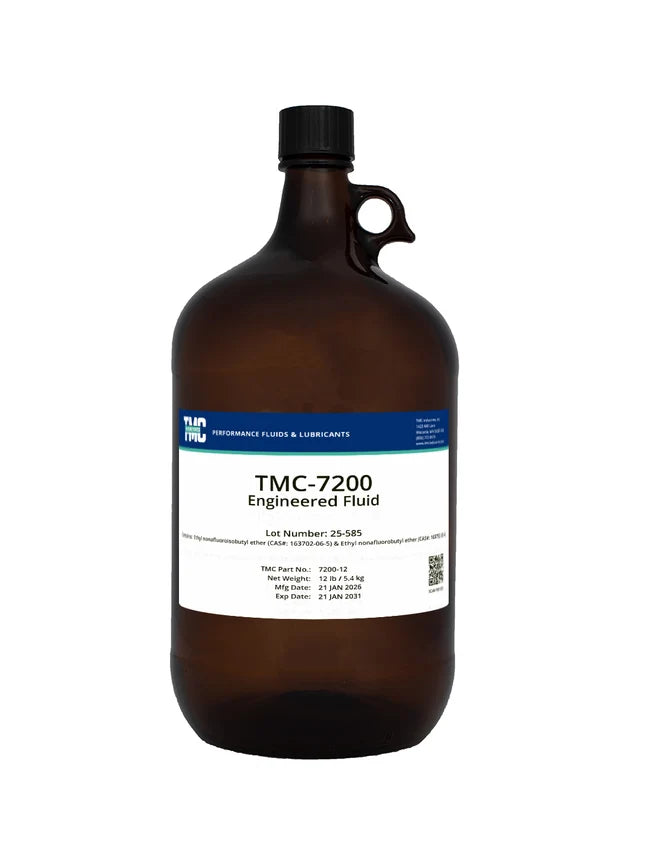

Available Packaging Sizes

TMC-7200 Engineered Fluid is listed in the following packaging options:

Shelf Life and Storage

TMC-7200 has a shelf life of 5 years from the date of manufacture when stored in its original packaging under normal conditions.

According to TMC Industries, the material can be re-certified every 5 years for up to 20 years.

For storage and handling:

• Keep the product in its original packaging.
• Keep containers tightly closed.
• Carefully reseal opened containers and keep them upright.
• Avoid contact with strong acids, strong bases, and strong oxidizing agents.
• Follow the manufacturer's current Safety Data Sheet for safe handling and storage.

Recycling and Disposal

TMC-7200 Engineered Fluid can be recycled and reused.

TMC Industries provides reclamation services for used fluorinated fluids. According to the manufacturer, reclaimed fluids are restored to like-new condition and tested to meet new product specifications.

A Certificate of Analysis is issued with each reclaimed-fluid order.

Used material can be reclaimed by the manufacturer or disposed of at an approved facility according to applicable local regulations.

TMC-7200 Engineered Fluid – Authorized Distributor

Econtrol Devices is an authorized distributor of TMC Industries products, including TMC-7200 Engineered Fluid.

For information about product specifications, packaging options, and quotations for TMC-7200 Engineered Fluid, contact Econtrol Devices.

Safety Information: TMC-7200 is restricted to professional and industrial use and is not intended for use as a medical device or drug. Review the manufacturer's current Safety Data Sheet and product label before handling or using this fluid.
