AD-40 Fluorinated Engineering Fluid
Guaranteed Safe Checkout
AD-40 Fluorinated Engineering Fluid is a fully fluorinated liquid designed for industrial heat transfer and electronic testing applications. It is non-flammable, chemically inert, thermally stable, and electrically non-conductive. The manufacturer's Technical Data Sheet also describes it as having low toxicity.
AD-40 is used in semiconductor manufacturing, data centers, aviation electronics, power electronics, and high-performance computing applications. It is also designed for electronics testing, liquid burn-in testing, and environmental stress screening.
Key Features
- Non-Flammable: The fluid has no flash point.
- Thermally Stable: Suitable for the heat transfer applications identified in the manufacturer's technical documentation.
- Electrically Non-Conductive: Designed for electronic and electrical applications.
- Chemically Inert: A fully fluorinated engineering fluid.
- Low Toxicity: Described as low toxicity in the manufacturer's Technical Data Sheet.
- Material Compatibility: Compatible with most metals and plastics, with some limitations involving elastomers.
Applications
AD-40 Fluorinated Engineering Fluid is designed for:
- Semiconductor heat transfer applications
- Data center heat transfer applications
- Aviation electronics
- Power electronics
- High-performance computing
- Electronics testing
- Liquid burn-in testing
- Environmental stress screening
Technical Specifications
|
Property |
AD-40 Specification |
|
Appearance |
Clear, colorless liquid |
|
Average Molecular Weight |
650 g/mol |
|
Boiling Point (1 atm) |
165°C |
|
Pour Point |
-57°C |
|
Vapor Pressure |
0.29 kPa |
|
Liquid Density |
1855 kg/m³ |
|
Kinematic Viscosity |
2.2 cSt |
|
Absolute Viscosity |
4.1 cP |
|
Liquid Specific Heat |
1100 J/(kg·°C) |
|
Liquid Thermal Conductivity |
0.065 W/(m·°C) |
|
Refractive Index |
1.29 |
|
Surface Tension |
16 mN/m |
|
Ozone Depletion Potential (ODP) |
0 |
|
Flash Point |
None |
|
Dielectric Constant |
1.9 |
|
Dielectric Strength (0.1-inch gap) |
>40 kV |
|
Volume Resistivity |
10¹⁵ Ω·cm |
|
Global Warming Potential (GWP) |
Approximately 6000 |
Chemical Information
- Chemical Composition: Perfluoro Compounds, C5–18
- Concentration: 100%
- CAS Number: 86508-42-1

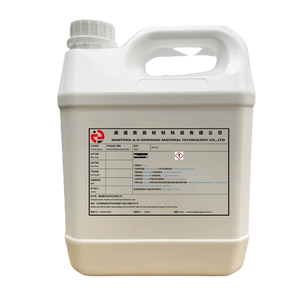

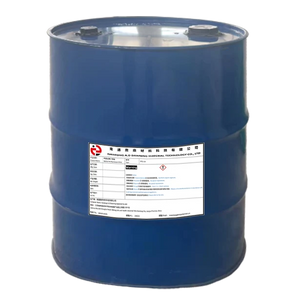

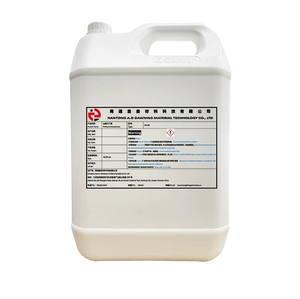

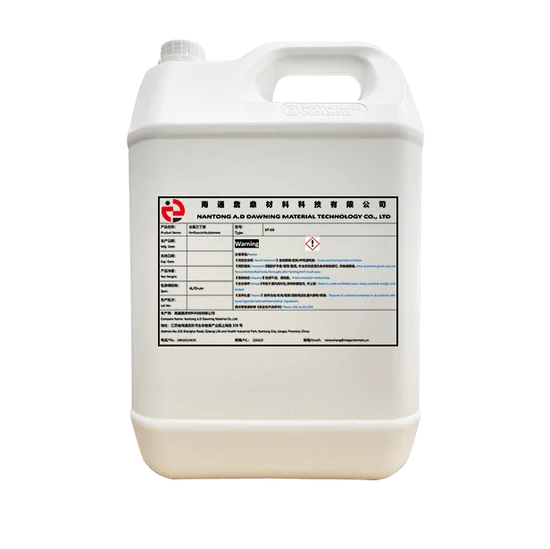

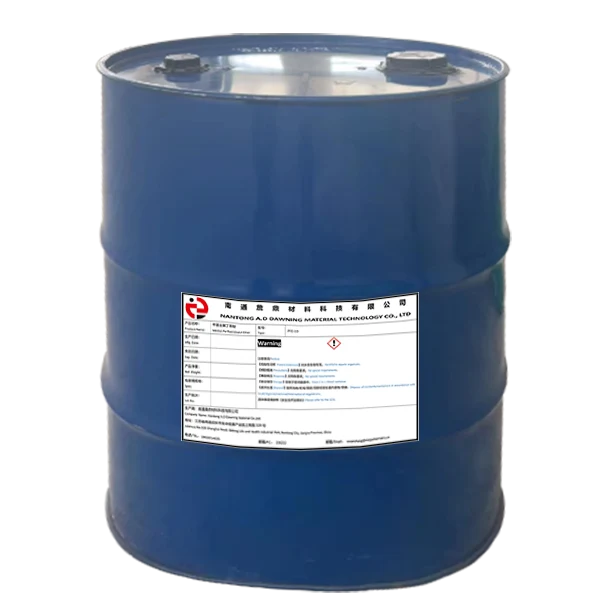

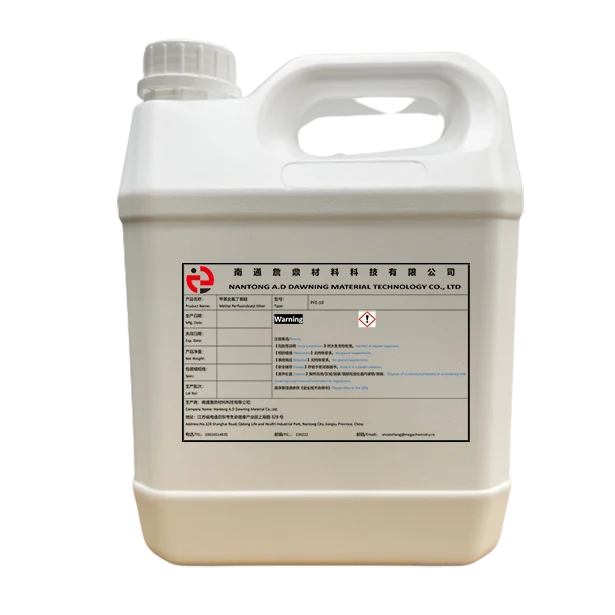

Available Packaging
The manufacturer's Technical Data Sheet specifies the following packaging:
|
Packaging Type |
Net Weight |
Container Capacity |
|
Can |
5 kg |
4 L |
|
Pail |
20 kg |
15 L |
|
Drum |
250 kg |
200 L |
Material Compatibility
AD-40 is compatible with most metals and plastics. Some limitations apply to elastomers. The manufacturer recommends contacting A.D Dawning Material Co. for additional material compatibility guidance.
Storage Instructions
Store AD-40 Fluorinated Engineering Fluid in a tightly closed container in a cool, dry, and well-ventilated area, away from incompatible substances.
Safety Information
According to the manufacturer's Safety Data Sheet, AD-40 is not classified as hazardous under GHS. Refer to the manufacturer's Safety Data Sheet for handling precautions, personal protective equipment requirements, and additional safety information.
