Description

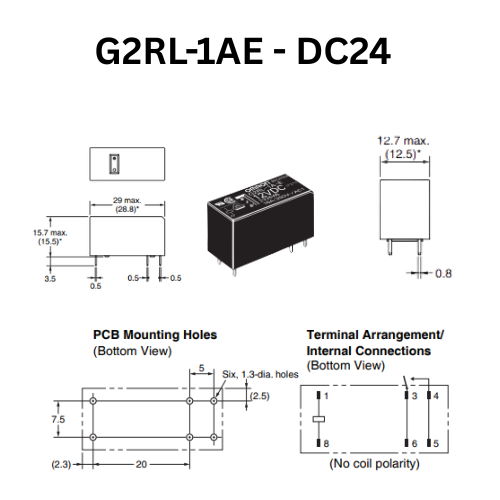

Omron G2RL-1AE-DC24 General purpose Relay, with 15.7 mm height, ideal for incorporation in miniature equipment.
Features:
A wide variety of single-pole, double-pole, high-capacity (16 A)
type and high-sensitivity type (250 mW) Relays are available.
Low profile; 15.7 mm max. in height.
Conforms to VDE (EN61810-1), UL508, and CSA22.2.
IEC/EN 60335-1 conformed. (-HA Model)
Satisfies ambient operating temperature requirements of 85°C
and 105°C (-CV Model).
Clearance and creepage distance: 8 mm / 8 mm min.
Coil insulation system: Class F (UL1446).
G2RL-1(A)-E-ASI: TV3 Rating models available.
IEC/EN 60079-15 conformed
(Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models).
Applications:
Home appliances
OA equipment
Industrial machinery
