Description

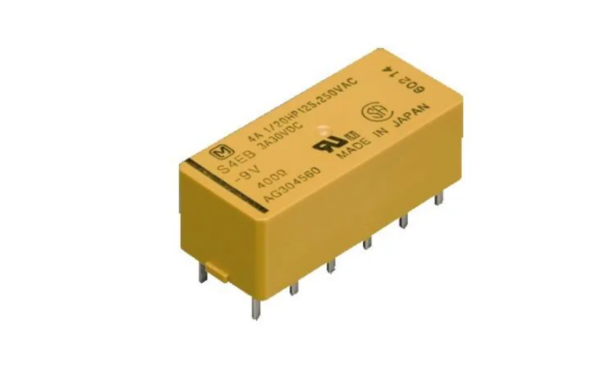

S4EB-24V General Purpose Relay
The S4EB-24V is a 24V general purpose relay designed for reliable switching in many industrial and commercial applications. It is compact, durable, and provides strong performance for controlling circuits and devices. This relay is ideal for use in automation panels, HVAC systems, and other electrical systems.
S4EB-24V Technical Information
- Model: S4EB-24V
- Coil Voltage: 24V DC
- Contact Form: 4 Form C (4PDT)
- Contact Rating: 5A 250V AC / 30V DC
- Coil Power: Approx. 530 mW
- Insulation Resistance: Min. 1,000 MΩ at 500 V DC
- Dielectric Strength: 1,500V AC between coil and contacts
- Operating Time: Approx. 15 ms
- Release Time: Approx. 10 ms
- Mounting Type: Plug-in
- Operating Temperature: -40°C to +85°C
- Dimensions: Compact size for easy mounting
- Brand: Panasonic Electric Works
S4EB-24V Relay Category
- General Purpose Relays
- Industrial Control Components
- Electrical Switching Devices
- Automation Relays
S4EB-24V Relay Features
- 24V DC coil voltage
- 4-pole double throw (4PDT) contacts
- High insulation and dielectric strength
- Compact plug-in design
- Reliable switching performance
- Long electrical and mechanical life
- Operates in wide temperature range
Benefits of S4EB-24V Relay
- Allows safe and efficient switching of electrical circuits
- Space-saving design fits in control panels easily
- Can be used in many different systems and industries
- Long-lasting and reduces need for replacements
- Stable operation even in harsh conditions
Applications of S4EB-24V Relay
- Industrial automation
- Home appliances
- Building management systems
- HVAC controls
- Lighting systems
- Control panels and circuit protection
- Office and factory equipment
How to Use S4EB-24V relay
Install the S4EB-24V relay into a compatible relay socket or control panel. Connect the 24V DC power supply to the coil terminals. Then, wire the contacts according to the switching function needed. When the relay coil is energized, the contacts switch positions, allowing you to control circuits or devices remotely or automatically. Make sure to follow all standard wiring and safety practices.
Why You Should Buy
The Panasonic S4EB-24V Relay is a dependable choice when you need a general purpose relay with stable switching, long life, and easy installation. It suits a wide range of uses, making it ideal for professionals working in control, automation, and power systems.
Where and Who Uses It
- Used in: Control panels, HVAC systems, lighting boards, factory equipment
- Used by: Electrical engineers, automation technicians, panel builders, maintenance teams
About the Manufacturer
Panasonic Electric Works is a leading name in electronic components and automation solutions. Known for quality and innovation, Panasonic designs products that are reliable, long-lasting, and efficient. Their relays are used worldwide in industries ranging from automation to energy and home appliances.
