Teltonika TSW010 Industrial Ethernet Switch

Description

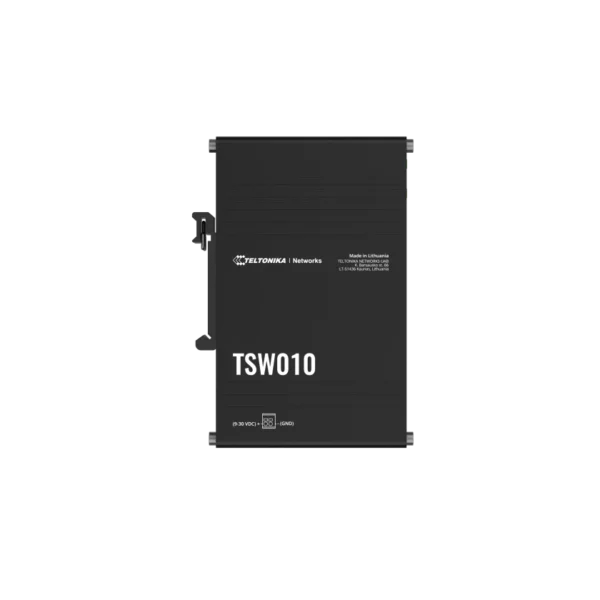

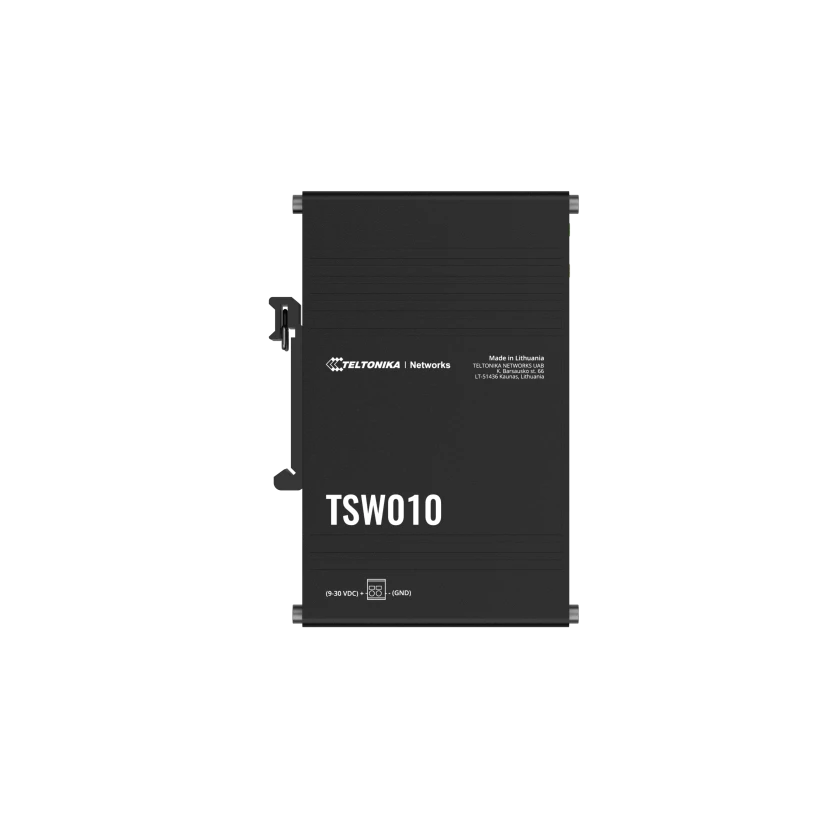

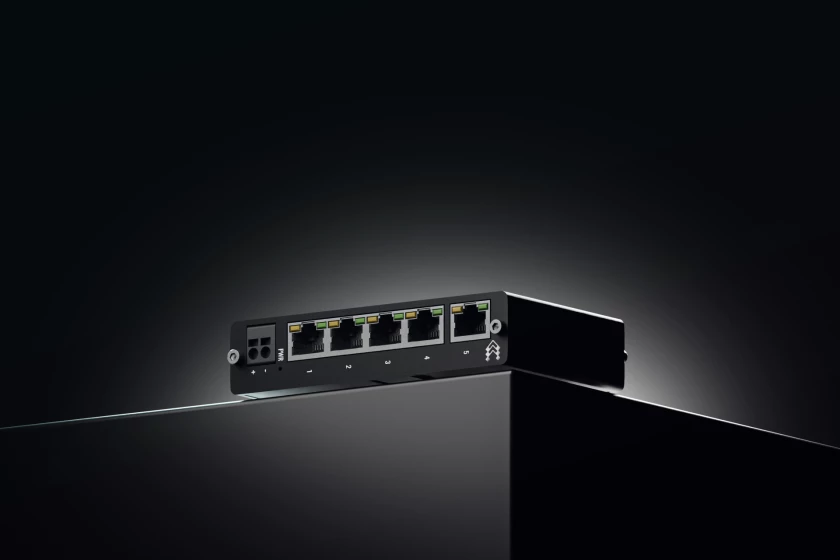

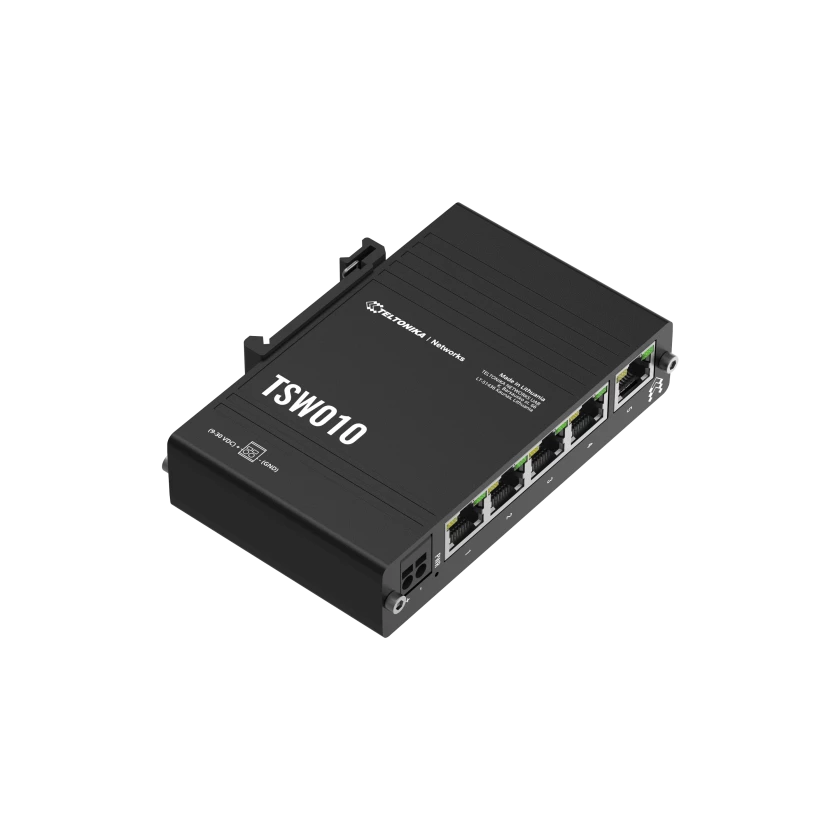

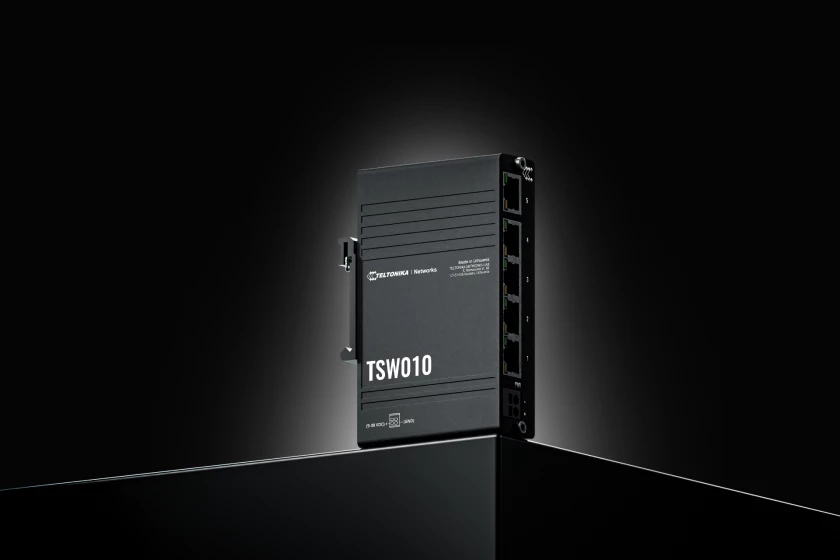

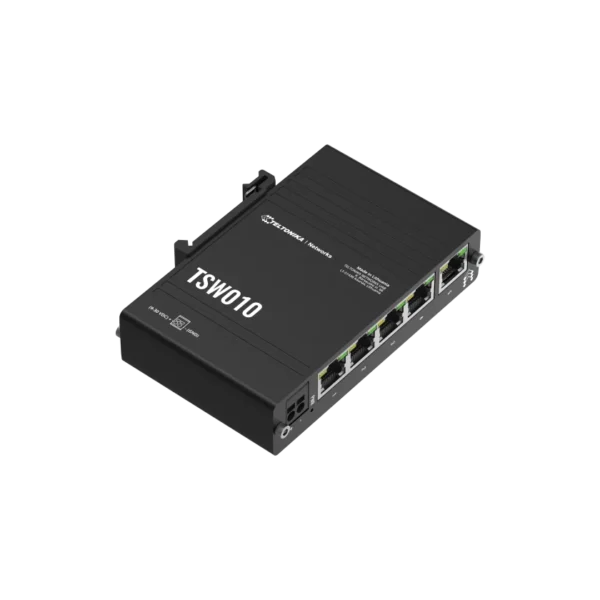

The Teltonika TSW010 is a compact, unmanaged industrial Ethernet switch featuring five 10/100 Mbps RJ45 ports. Designed for plug-and-play operation, it requires no additional configuration, making it ideal for straightforward network expansions. Its rugged anodized aluminum housing and integrated DIN rail mounting ensure durability and ease of installation in industrial environments.

Technical Information

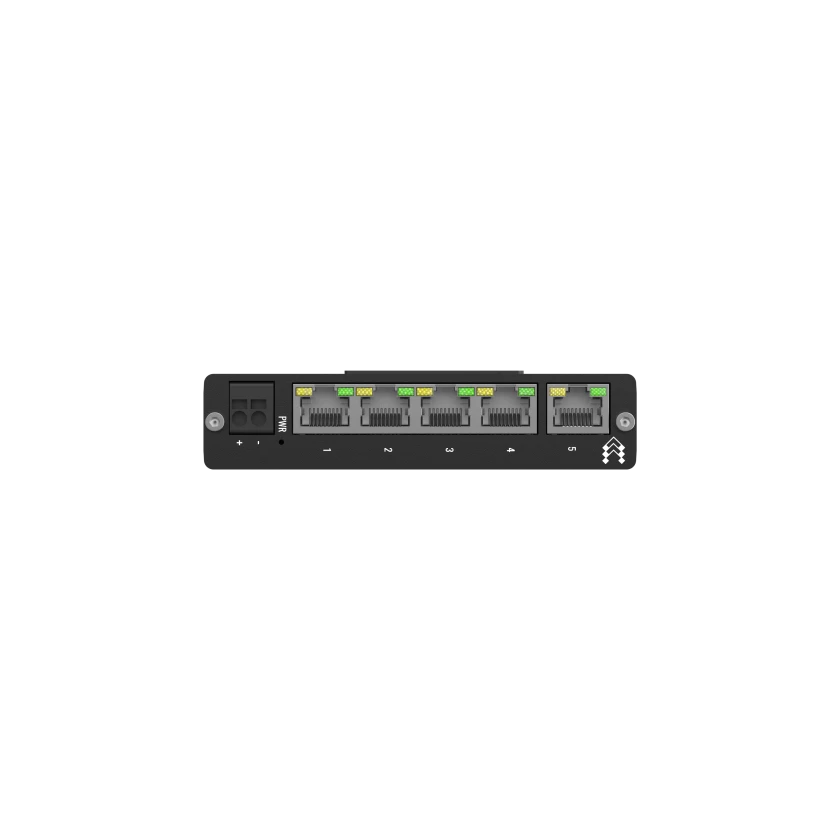

• Ethernet Ports: 5 x RJ45, 10/100 Mbps, auto MDI/MDIX crossover
• Standards Supported: IEEE 802.3i, 802.3u, 802.3x, 802.3az
• Bandwidth (Non-blocking): 1 Gbps
• MAC Address Table Size: 2K entries
• Jumbo Frame Support: 2048 bytes
• Power Input: 9 – 30 VDC via 2-pin industrial DC power socket
• Passive PoE Input: 9 – 30 VDC via ETH1 port (Mode B), not IEEE 802.3af/at/bt compliant
• Power Consumption: Idle: 0.3 W / Max: 0.9 W
• Casing Material: Anodized aluminum housing and panels
• Dimensions (W x H x D): 1 x 27.4 x 80.5 mm
• Weight: 5 g

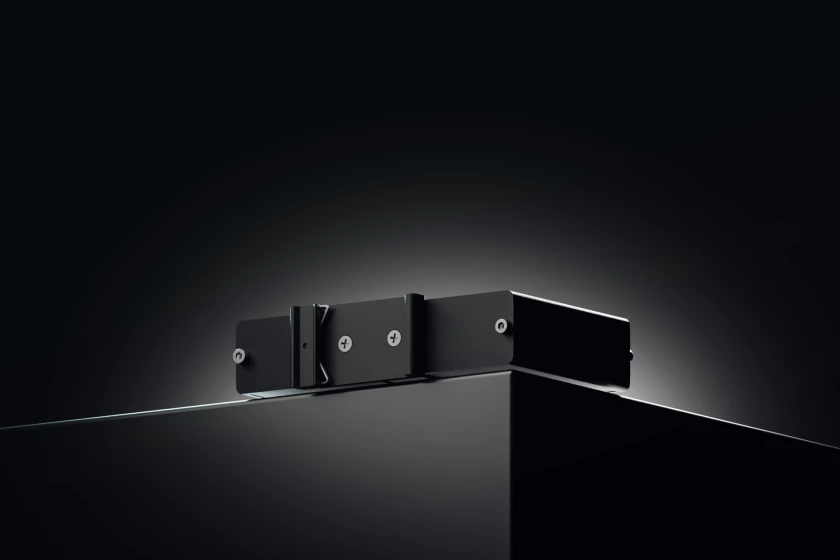

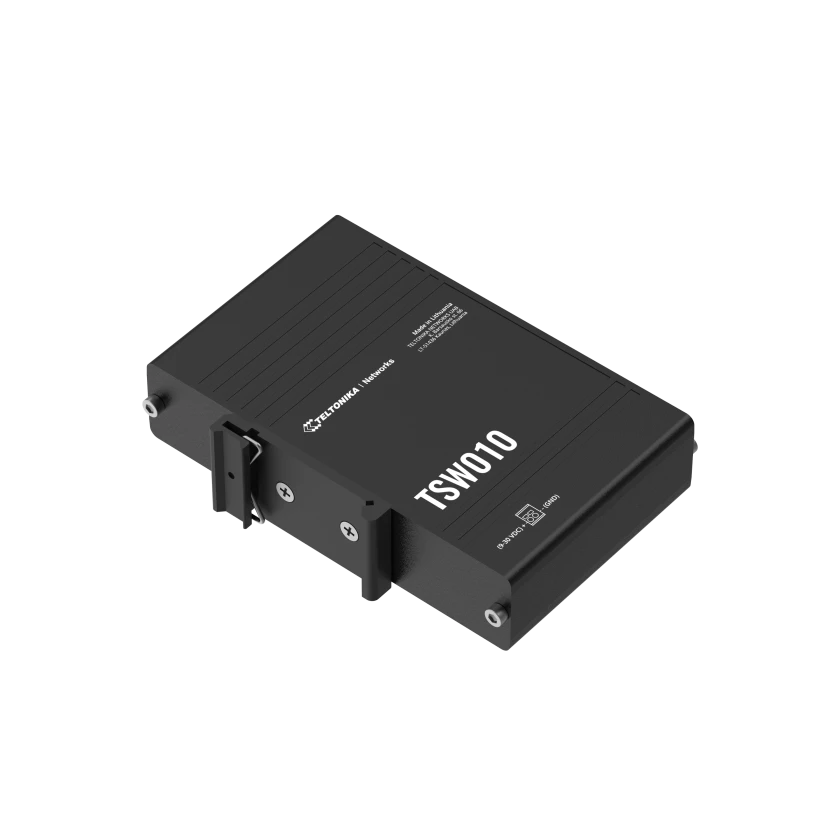

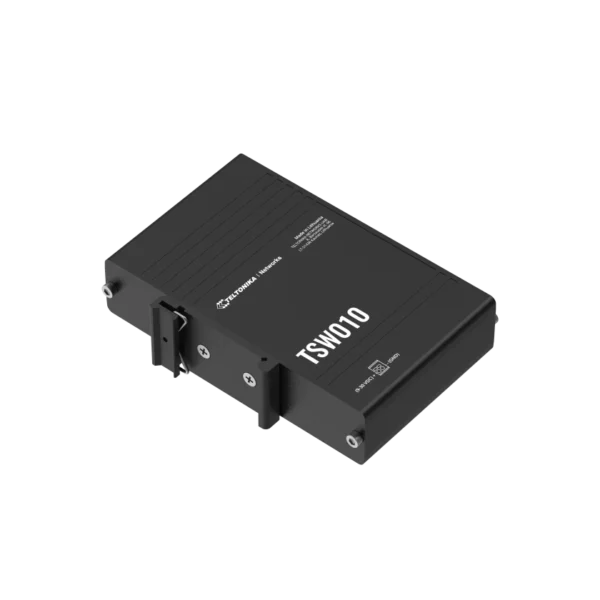

• Mounting Options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
• Operating Temperature: -40 °C to 75 °C
• Operating Humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30
• Status LEDs: 1 x Power LED, 10 x LAN status LEDs

What is an Unmanaged Ethernet Switch?

An unmanaged Ethernet switch is a plug-and-play networking device that allows multiple Ethernet devices to communicate within a local area network (LAN). It operates without the need for configuration, making it ideal for straightforward, reliable connections in various applications

Key Features

• Five 10/100 Mbps RJ45 Ethernet ports
• Integrated DIN rail mounting for easy installation
• Wide power input range (9 – 30 VDC) with industrial-grade 2-pin connector
• Passive PoE input via ETH1 port (9 – 30 VDC, Mode B)
• Low power consumption: 0.3 W idle, 0.9 W max
• Rugged anodized aluminum housing
• Operating temperature range: -40 °C to 75 °C
• Supports jumbo frames up to 2048 bytes
• Non-blocking bandwidth of 1 Gbps

Benefits

The Teltonika TSW010 offers a reliable and cost-effective solution for expanding network connectivity in industrial settings. Its plug-and-play design ensures quick deployment without the need for complex configuration. The switch’s low power consumption and robust construction make it suitable for harsh environments, reducing maintenance costs and downtime.

Key Benefits:

• ✔️ Simplified network expansion with plug-and-play functionality
• ✔️ Energy-efficient operation reduces operational costs
• ✔️ Durable design withstands industrial conditions
• ✔️ Flexible mounting options accommodate various installation scenarios

Applications

• Industrial automation and manufacturing
• Machine-to-machine (M2M) communication
• Energy and utility monitoring systems
• Smart city infrastructure
• Transportation and logistics networks
• Retail and point-of-sale systems

How to Use

To deploy the Teltonika TSW010, mount the switch using the integrated DIN rail bracket or optional wall/flat surface kit. Connect the 2-pin DC power input to a suitable power source within the 9 – 30 VDC range. Alternatively, power can be supplied via the ETH1 port using passive PoE (9 – 30 VDC, Mode B). Plug in Ethernet cables from your devices into the RJ45 ports. The switch will automatically manage data traffic between connected devices without the need for configuration.

Cautions

• Ensure the power supply voltage is within the specified range (9 – 30 VDC) to prevent damage.
• The passive PoE input via ETH1 port is not compliant with IEEE 802.3af/at/bt standards; using incompatible power sources may damage the device.
• Avoid exposure to moisture or conductive contaminants to maintain IP30 protection.
• Use appropriate mounting hardware to secure the switch and prevent mechanical stress.

Why You Should Buy

The Teltonika TSW010 is an ideal choice for industrial environments requiring reliable and straightforward network expansion. Its combination of durability, energy efficiency, and ease of installation ensures seamless integration into existing systems, enhancing operational efficiency without incurring significant costs.

Where and Who Uses It

The TSW010 is widely utilized in industrial sectors such as manufacturing, energy, transportation, and retail. Engineers, system integrators, and IT professionals deploy this switch to facilitate robust and efficient network connectivity in environments where reliability and minimal maintenance are paramount.

About the Manufacturer

Teltonika Networks is a global provider of networking solutions, specializing in the development of industrial-grade connectivity devices. With a focus on innovation and quality, Teltonika offers a range of products designed to meet the demands of various industries, ensuring reliable and secure data communication.
