Description

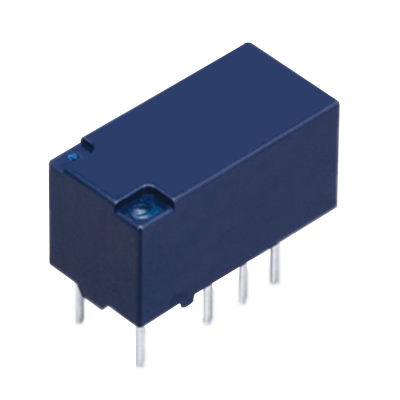

2, 000 V AC breakdown voltage, 2 Form C and 2 A PCB Low Signal Relays -TX2-L-3V
TX2-L-3V is a compact low signal relay designed for high-performance switching in sensitive electronic circuits. With a 3V coil voltage, it provides reliable and quick signal control. It’s a trusted choice for various communication and control systems.
TX2-L-3V Full Technical Information
- Terminal Type: Standard PC board terminal
- Contact Type: Standard type
- Operating Function: 1 coil latching type
- Rated Operating Power: 100mW
- Coil Voltage: 3V DC
- Packing Quantity: Tube packing
- Protective Construction: Sealed Type
- Contact Arrangement: 2 Form C
- Contact Material: Ag+Au clad
- Nominal Switching Capacity (Resistive Load): 2A, 30V DC
- Max. Switching Current: 2A
- Min. Switching Capacity: 10μA, 10mV DC
- Breakdown Voltage (Initial):
- Between Open Contacts: 1,000 Vrms for 1 min (Detection current: 10mA)
- Between Contact and Coil: 2,000 Vrms for 1 min (Detection current: 10mA)
- Contact-Contact: 1,000 Vrms for 1 min (Detection current: 10mA)
- Surge Breakdown Voltage (Initial):
- Between Open Contacts: 1,500 V (10 × 160μs) (FCC Part 68)
- Between Contacts and Coil: 2,500 V (2 × 10μs) (Telecordia)
- Expected Life: Mechanical: Min. 10⁷ (at 180 operations)
- Conditions:
- Ambient Temperature: –40 to +85°C (–40 to +185°F)
- Humidity: 5 to 85% R.H. (Non-condensing at low temperature)
- Expected Life: Electrical:
- Min. 10⁵ (2A 30V DC resistive)
- 5 × 10⁴ (1A 30V DC resistive) (at 20 operations/min)
- Height: 8.2 mm
- Weight: Approx. 2 g / 0.071 oz
- Packing Quantity:
- Inner Carton: 40 pcs
- Outer Carton: 1000 pcs
- Set Voltage: 75% or less of nominal voltage (Initial)
- Reset Voltage: 75% or less of nominal voltage (Initial)
Category
- Low Signal Relays
- 3V DC Relays
- Miniature Electromechanical Relays
- Panasonic Signal Switching Components
TX2-L-3V Features
- 3V DC coil for energy-efficient use
- DPDT (2 Form C) contact design
- Compact size fits tight spaces
- High dielectric strength and insulation
- Quick response time for fast switching
- Long electrical life and reliability
- RoHS compliant and lead-free
Benefits of TX2-L-3V
- Saves space on circuit boards
- Provides stable performance for low-level signals
- Works well in both AC and DC circuits
- Easy to integrate into small or portable devices
- Reduces power usage with low coil voltage
- Delivers long-term performance in harsh conditions
Applications
- Communication equipment
- Security and alarm systems
- Test and measurement instruments
- Audio/visual devices
- Office automation products
- Control systems in industrial setups
- Medical and analytical devices
How to Use
To use the TX2-L-3V relay, simply mount it on a compatible printed circuit board (PCB) using its through-hole pins. Connect the coil to a 3V DC power source, and link the contacts to your load or signal lines. When the coil is energized, the relay will switch the contacts, allowing for control of different circuits with minimal current. It is ideal for use in systems where stable and fast switching of low-power signals is needed.
Why You Should Buy
You should choose the Panasonic TX2-L-3V relay if you need a compact, low-power relay that offers fast switching and high reliability. It’s perfect for small electronic circuits and signal-level switching. With a 3V coil, it’s energy-efficient and ideal for today’s miniaturized devices.
Where and Who Uses It
- Used In: Communication devices, electronic test equipment, automation panels, security systems
- Used By: Engineers, circuit designers, OEMs, maintenance teams, electronics hobbyists
About the Manufacturer – Panasonic Industrial Devices
Panasonic Industrial Devices is a global leader in advanced electronic components and solutions. Known for quality and innovation, Panasonic provides reliable relays, sensors, capacitors, and automation parts used in industries such as automotive, healthcare, manufacturing, and electronics. Their products are trusted for durability, safety, and performance worldwide.
