RUTX11 LTE Cat 6 Router

Description

RUTX11 LTE Cat 6 Router

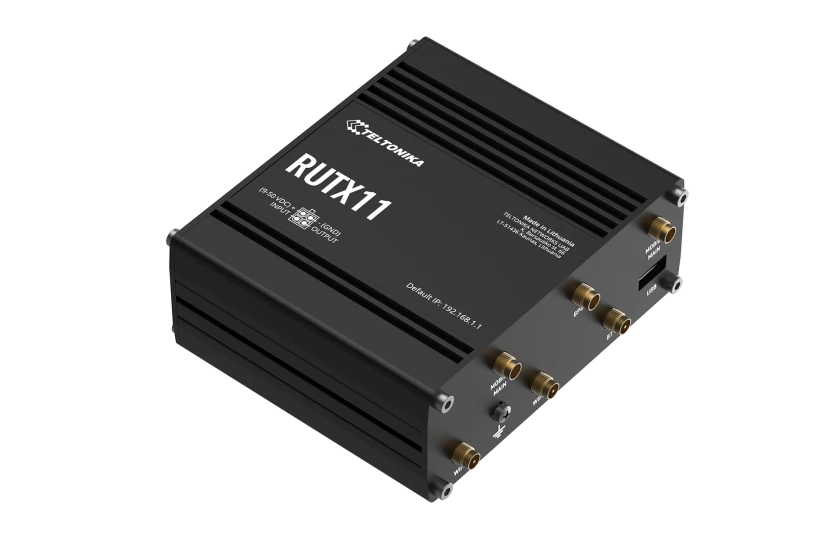

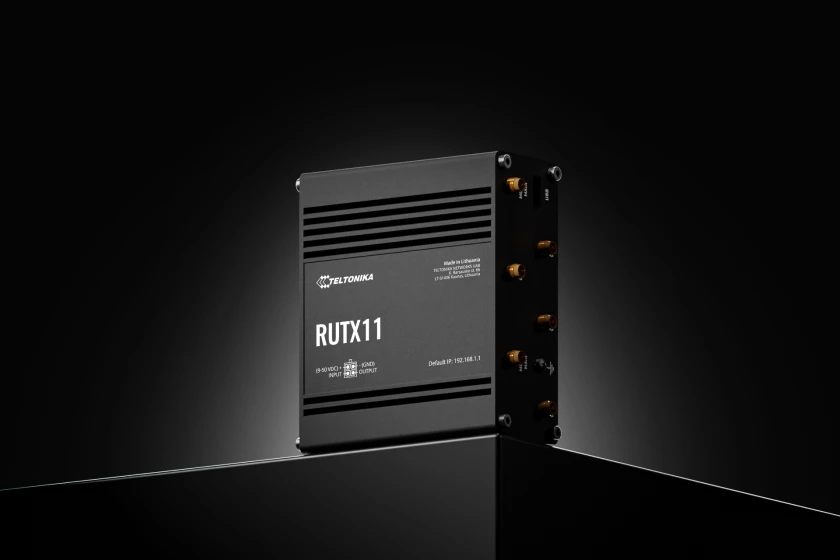

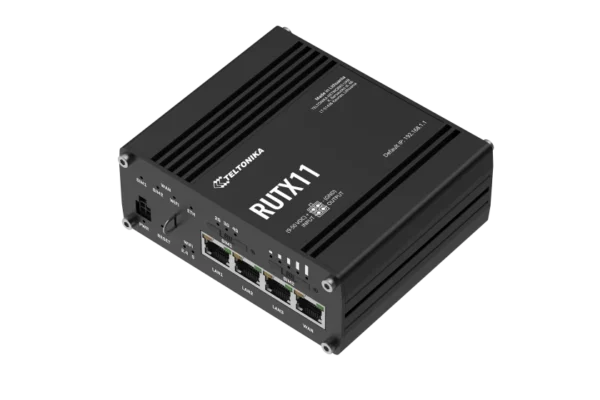

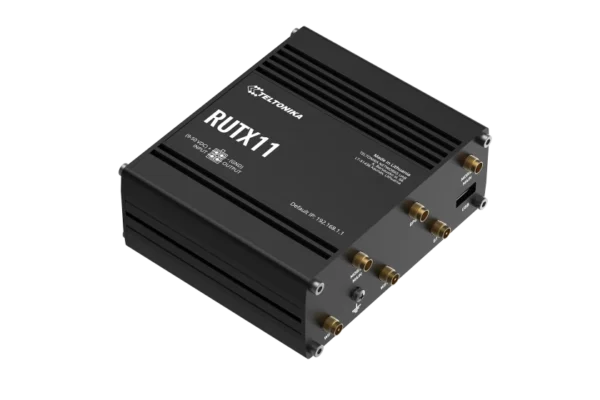

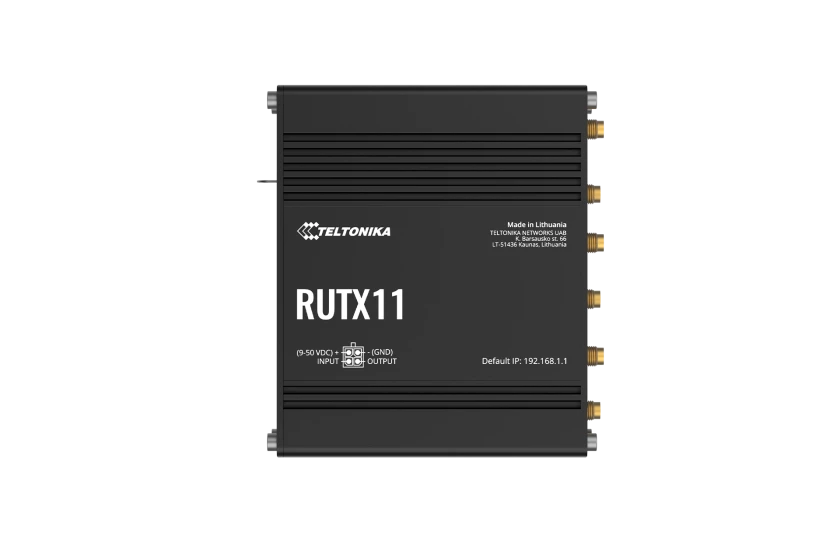

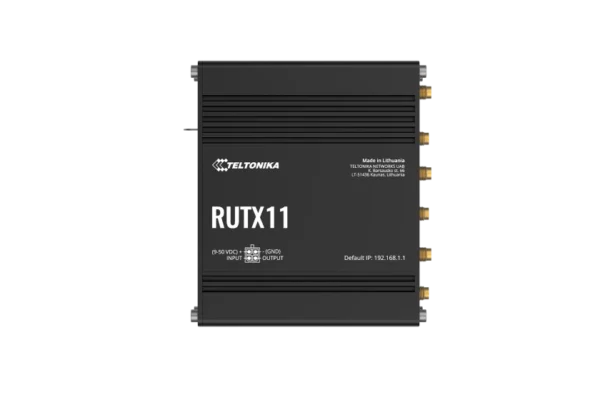

The Teltonika RUTX11 is a robust industrial LTE Cat 6 router designed for professional applications requiring reliable, high-speed connectivity. Equipped with dual SIM slots, four Gigabit Ethernet ports, dual-band Wi-Fi, and Bluetooth LE, it ensures seamless communication and redundancy. Its rugged design and advanced features make it ideal for demanding industrial environments.

Full Technical Information:

• Mobile Connectivity: 4G LTE Cat 6 with download speeds up to 300 Mbps and upload speeds up to 50 Mbps; 3G up to 42 Mbps download and 5.76 Mbps upload.
• SIM Slots: Dual SIM (Mini SIM – 2FF) with auto-failover, backup WAN, and other switching scenarios.

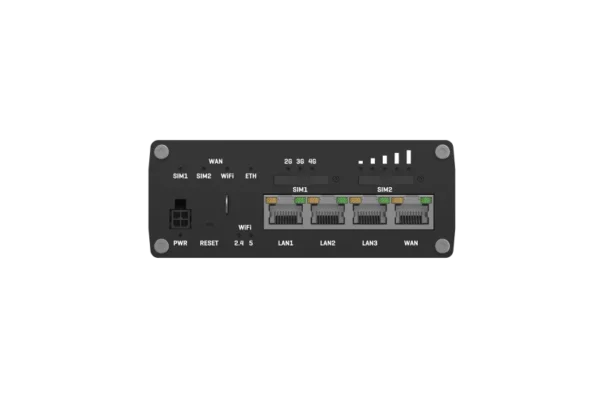

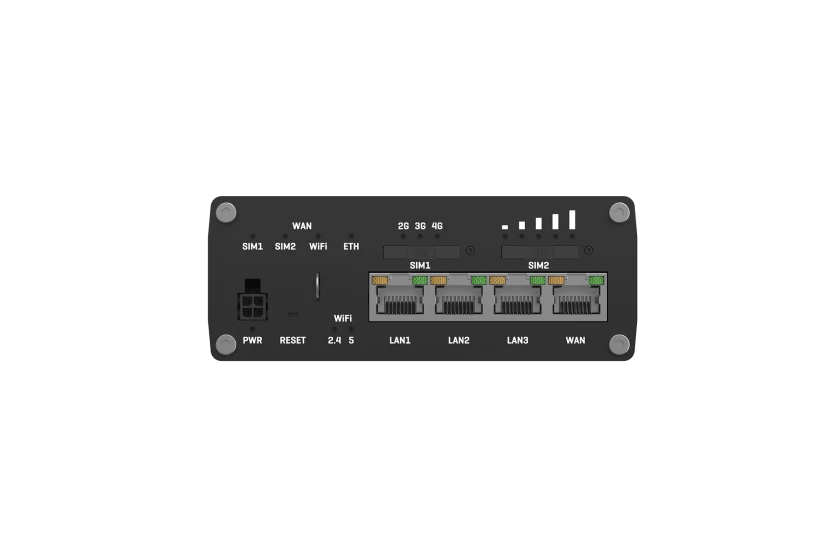

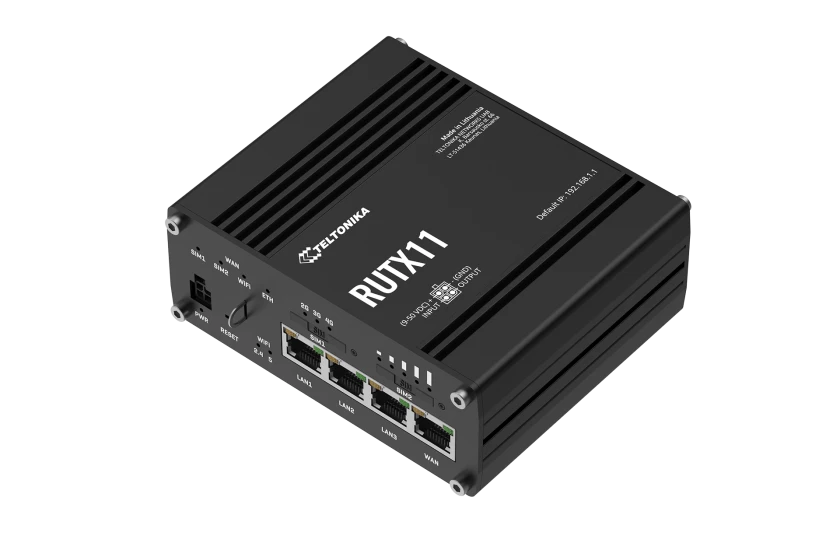

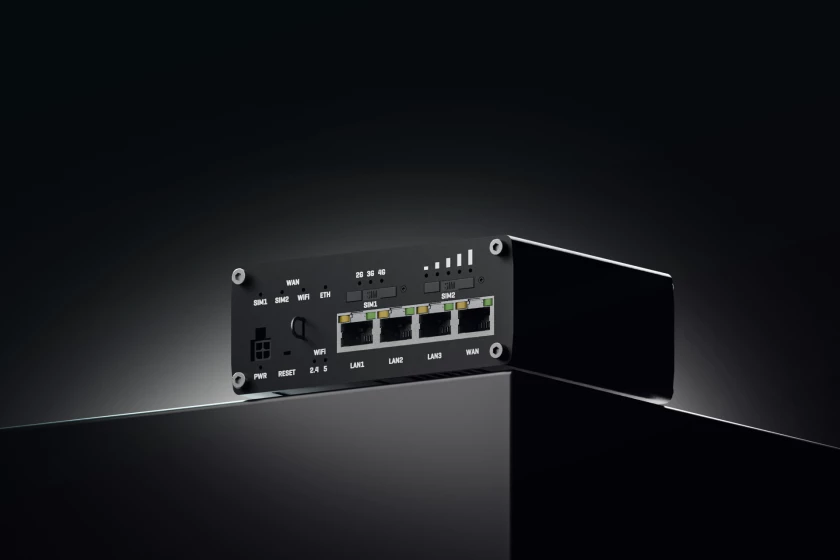

• Ethernet Ports: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported.
• Wi-Fi: Dual-band 802.11ac Wi-Fi (Wave 2) with data transmission rates up to 867 Mbps.
• Bluetooth: Bluetooth 4.0 LE for short-range communication.
• GPS: Integrated GNSS (GPS) for location tracking.
• USB: 1 x USB 2.0 port for external devices.
• I/O: 1 x Digital Input, 1 x Digital Output on 4-pin power connector.

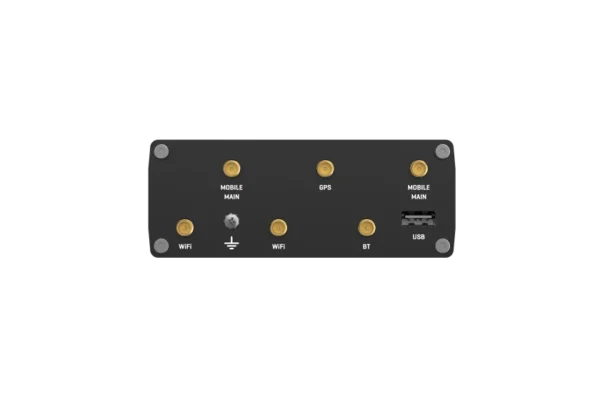

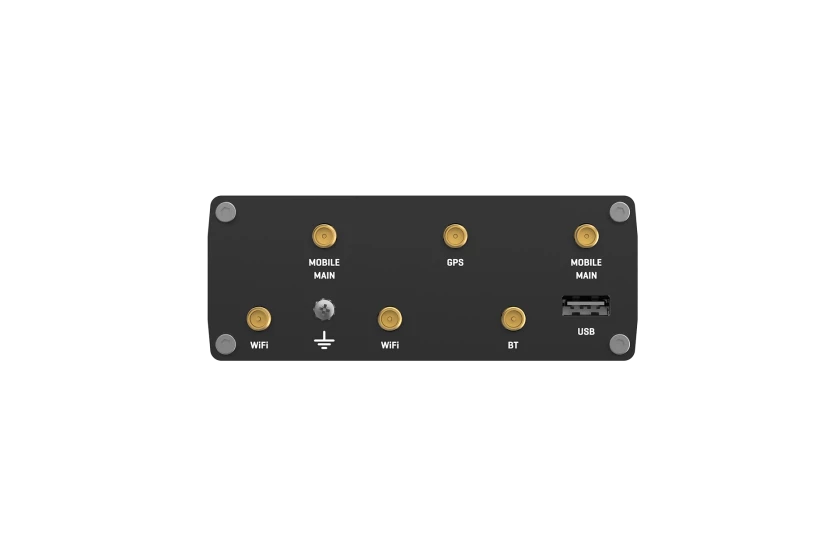

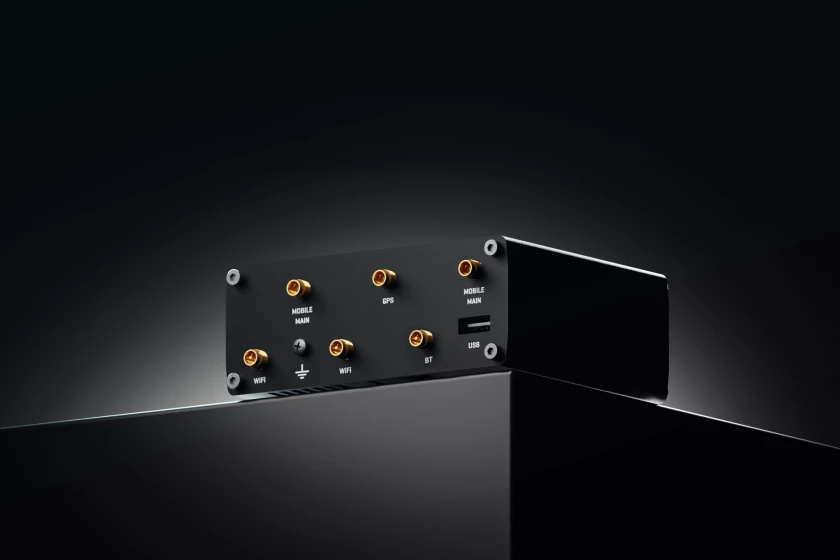

• Antennas: 2 x LTE antennas (swivel, SMA male), 2 x Wi-Fi antennas (swivel, RP-SMA male), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable).
• Power Input: 9 – 50 VDC via 4-pin DC power connector; 18 W PSU included.
• Operating Temperature: -40 °C to 75 °C.
• Dimensions: 132 x 44.2 x 95.1 mm; Weight: 533 g.
• Mounting Options: DIN rail (can be mounted on two sides), flat surface placement.
• Ingress Protection Rating: IP30.
• Operating System: RutOS (OpenWrt based Linux OS) with advanced security features and specialized industrial protocols.

What is an Industrial LTE Router?

An industrial LTE router is a networking device designed to provide high-speed, reliable internet connectivity in industrial environments. It supports cellular networks and is built to withstand harsh conditions, ensuring continuous operation in critical applications.

Product Features:

• 4G LTE Cat 6 with download speeds up to 300 Mbps and upload speeds up to 50 Mbps.
• Dual SIM slots with auto-failover and backup WAN.
• Four Gigabit Ethernet ports with VLAN support.
• Dual-band 802.11ac Wi-Fi (Wave 2) with speeds up to 867 Mbps.
• Bluetooth 4.0 LE for short-range communication.
• Integrated GNSS (GPS) for location tracking.
• USB 2.0 port for external devices.
• Digital Input/Output for industrial applications.
• Rugged aluminum housing with IP30 rating.
• Wide operating temperature range (-40 °C to 75 °C).

Benefits:

The Teltonika RUTX11 offers a reliable and high-speed connectivity solution for industrial applications. Its dual SIM capability ensures uninterrupted communication, while the advanced RutOS provides robust security and remote management features. The router’s rugged design and wide operating temperature range make it suitable for deployment in harsh environments.

Key Benefits:

• Ensures continuous connectivity with dual SIM and auto-failover.
• Supports high-speed data transmission for bandwidth-intensive applications.
• Provides secure and remote management through RutOS.
• Suitable for deployment in harsh industrial environments.
• Facilitates easy integration with existing network infrastructure.

Applications:

• Industrial automation and control systems.
• Remote monitoring and management.
• Transportation and logistics.
• Energy and utility sectors.
• Smart city infrastructure.
• Retail and point-of-sale systems.
• Healthcare and emergency services.

How to Use:

To deploy the Teltonika RUTX11, mount the router using the DIN rail or flat surface options provided. Connect the necessary antennas to their respective ports. Insert SIM cards into the dual SIM slots and connect the power supply. Configure the router settings through the RutOS interface to suit your network requirements.

Cautions:

• Ensure the power supply voltage is within the specified range (9 – 50 VDC) to prevent damage.
• Avoid exposure to moisture or conductive contaminants to maintain IP30 protection.
• Use appropriate mounting hardware to secure the router and prevent mechanical stress

Why You Should Buy:

The Teltonika RUTX11 is an ideal solution for industries requiring reliable, high-speed internet connectivity. Its robust design, advanced features, and ease of integration make it a valuable asset for enhancing operational efficiency and ensuring continuous communication in critical applications.

Where and Who Uses It:

The RUTX11 is widely utilized across various industries, including manufacturing, transportation, energy, and healthcare. Engineers, IT professionals, and system integrators deploy this router to establish secure and reliable network connections in environments where consistent internet access is crucial.

About the Manufacturer:

Teltonika Networks is a global provider of networking solutions, specializing in the development of industrial-grade connectivity devices. With a focus on innovation and quality, Teltonika offers a range of products designed to meet the demands of various industries, ensuring reliable and secure data communication.
