Description

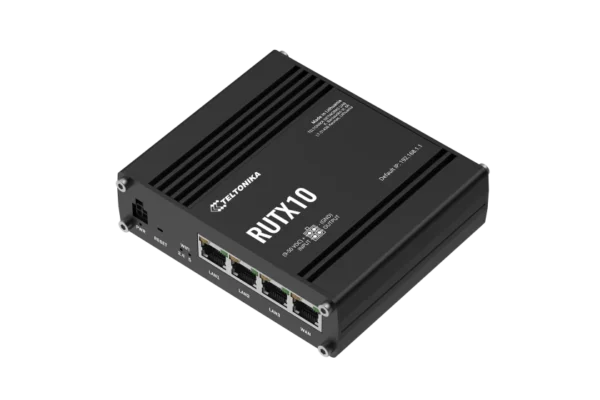

The Teltonika RUTX10 is a professional-grade Ethernet router designed for enterprise and industrial applications. It features 4 Gigabit Ethernet ports, dual-band Wi-Fi 5 (802.11ac) with speeds up to 867 Mbps, and Bluetooth LE connectivity. Powered by a Quad-core ARM Cortex A7 CPU and Teltonika’s RutOS, it ensures robust performance and advanced networking capabilities
Full Technical Information
- CPU: Qualcomm Quad-core ARM Cortex A7, 717 MHz
- Memory: 256 MB RAM, 256 MB Flash
- Ethernet Ports: 4 x 10/100/1000 Mbps (1 x WAN, 3 x LAN; WAN port configurable as LAN)
- Wi-Fi: Dual-band 802.11ac Wave 2 (Wi-Fi 5), MU-MIMO, up to 867 Mbps
- Bluetooth: Bluetooth 4.0 LE
- I/O: 1 x Digital Input, 1 x Digital Output (Open Collector)
- USB: 1 x USB 2.0 Host Port
- Power Input: 9 – 50 VDC via 4-pin DC power socket
- Operating Temperature: -40 °C to 75 °C
- Housing: Aluminum with DIN rail mounting option
- Dimensions: 115 x 32.2 x 95.2 mm
- Operating System: RutOS (OpenWrt based Linux OS)
What is a Professional Ethernet Router?
A professional Ethernet router is a networking device designed to manage and direct data traffic between networks, providing high-speed wired and wireless connectivity. It offers advanced features such as VLAN support, VPN services, and robust security protocols, making it suitable for enterprise and industrial applications.
Key Features
- 4 x Gigabit Ethernet ports with VLAN support
- Dual-band Wi-Fi 5 (802.11ac) with MU-MIMO
- Bluetooth 4.0 LE for short-range communication
- Multiple VPN protocols: OpenVPN, IPsec, PPTP, L2TP, DMVPN, WireGuard, ZeroTier
- Advanced security features: Firewall, WPA3, 802.1x
- Remote Management System (RMS) compatibility
- Digital Input/Output for industrial applications
- USB 2.0 port for external devices
- Rugged aluminum housing with DIN rail mounting
- Wide operating temperature range (-40 °C to 75 °C)
Benefits
The Teltonika RUTX10 offers a robust and versatile networking solution for enterprises and industrial environments. Its high-speed connectivity, advanced security features, and remote management capabilities ensure reliable and secure data transmission.
Key Benefits:
- Ensures uninterrupted connectivity with dual-band Wi-Fi and multiple Ethernet ports
- Provides secure remote access through various VPN protocols
- Facilitates easy integration with existing network infrastructure
- Suitable for deployment in harsh industrial environments
- Enables remote monitoring and management via RMS
Applications
- Enterprise networking and branch offices
- Industrial automation and control systems
- Retail and point-of-sale systems
- Transportation and logistics
- Energy and utility sectors
- Smart city infrastructure
How to Use
To deploy the Teltonika RUTX10, mount the router using the DIN rail or flat surface options provided. Connect the necessary antennas to their respective ports. Connect the Ethernet cables to the appropriate ports and power up the device using the 4-pin DC power socket. Configure the router settings through the RutOS web interface to suit your network requirements.
Cautions
- Ensure the power supply voltage is within the specified range (9 – 50 VDC) to prevent damage.
- Avoid exposure to moisture or conductive contaminants to maintain IP30 protection.
- Use appropriate mounting hardware to secure the router and prevent mechanical stress.
Why You Should Buy
The Teltonika RUTX10 is an ideal solution for enterprises and industries requiring reliable, high-speed internet connectivity. Its robust design, advanced features, and ease of integration make it a valuable asset for enhancing operational efficiency and ensuring continuous communication in critical applications.
Where and Who Uses It
The RUTX10 is widely utilized across various sectors, including manufacturing, transportation, energy, and retail. IT professionals, network administrators, and system integrators deploy this router to establish secure and reliable network connections in environments where consistent internet access is crucial.
