Description

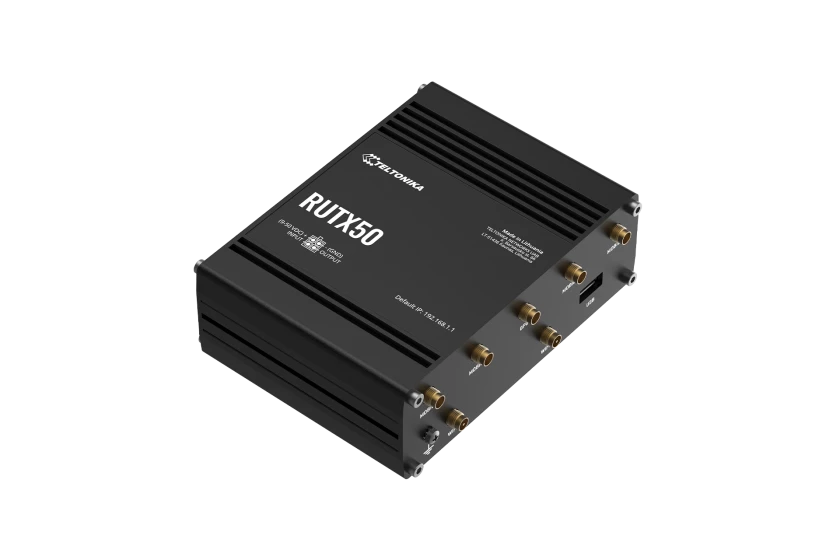

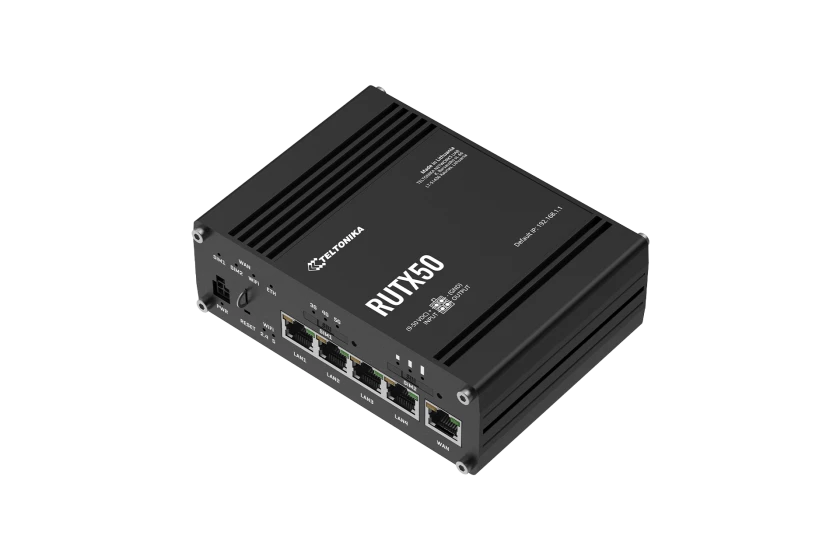

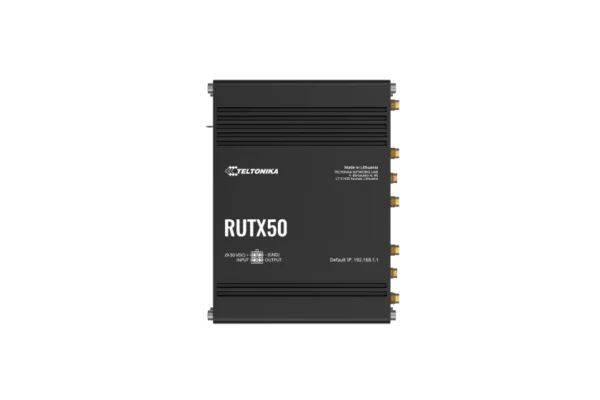

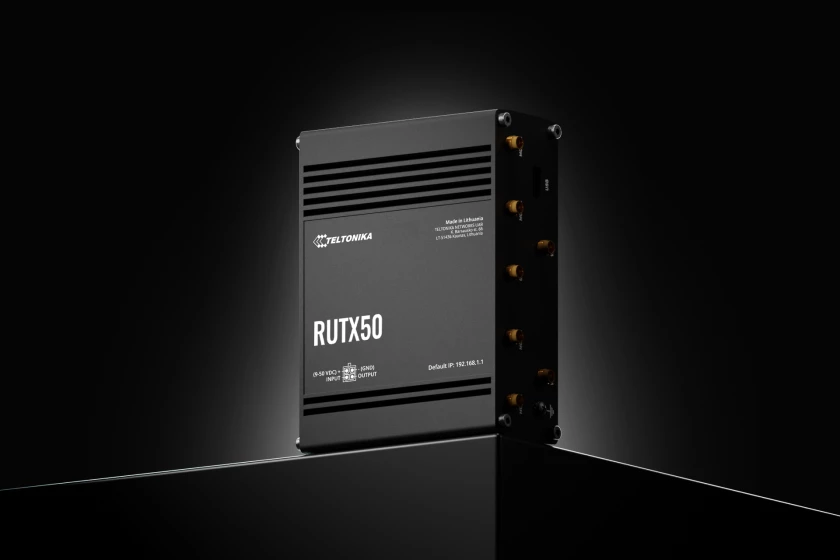

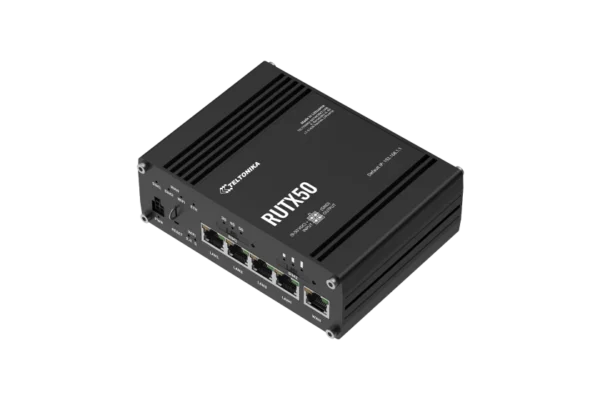

The Teltonika RUTX50 is a robust industrial-grade 5G router designed for high-speed, data-intensive applications. Equipped with dual SIM slots, 5 Gigabit Ethernet ports, and dual-band Wi-Fi, it ensures seamless connectivity with auto-failover capabilities. Its rugged design and advanced features make it ideal for demanding industrial environments
Full Technical Information
- Mobile Connectivity: 5G Sub-6GHz SA/NSA with download speeds up to 3.3 Gbps and upload speeds up to 900 Mbps; backward compatible with 4G LTE Cat 20 (up to 2.0 Gbps DL) and 3G networks.
- SIM Slots: Dual SIM (Mini SIM – 2FF) with auto-failover, backup WAN, and other switching scenarios.

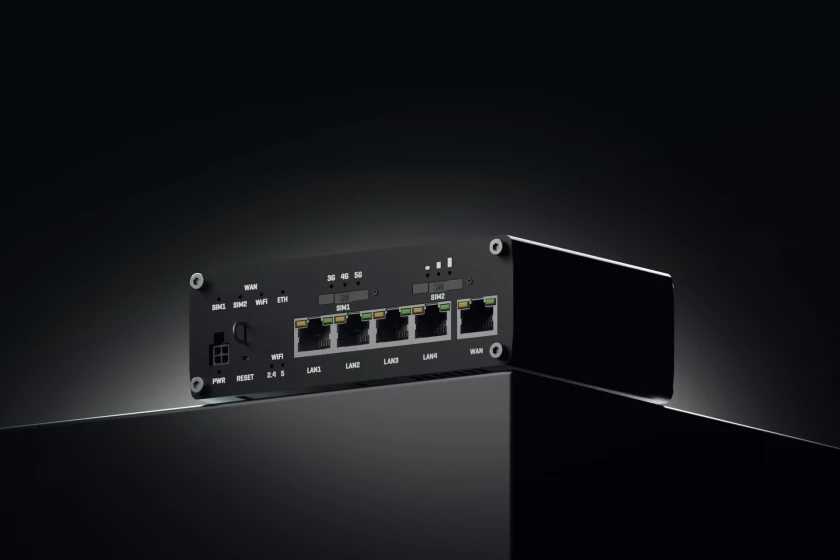

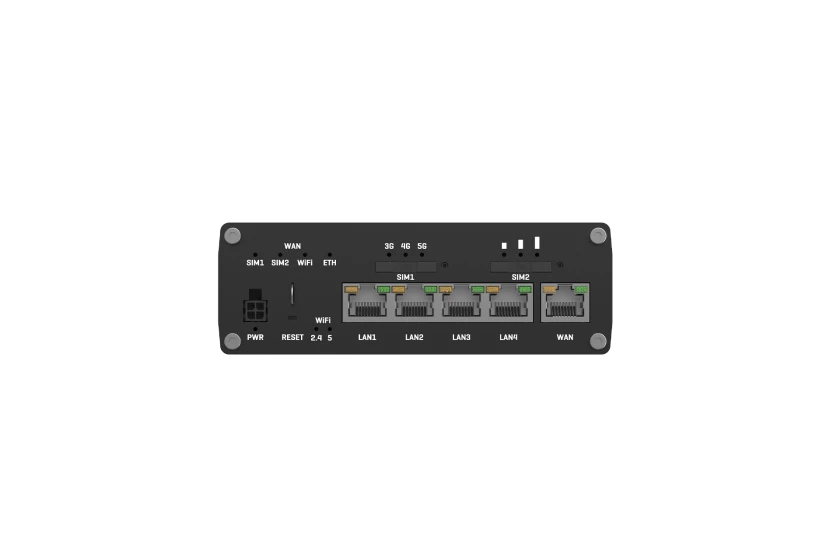

- Ethernet Ports: 5 x Gigabit Ethernet ports for high-speed wired connections.
- Wi-Fi: Dual-band 802.11ac Wi-Fi with data transmission rates up to 867 Mbps.
- GPS: Integrated GNSS (GPS) for location tracking.
- USB: 1 x USB A port for external devices.
- I/O: 1 x Digital Input, 1 x Digital Output on 4-pin power connector.

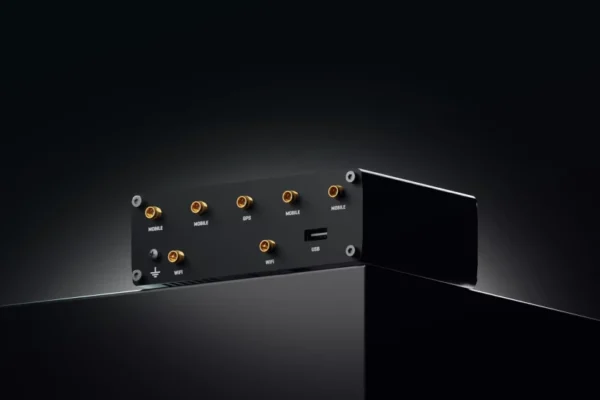

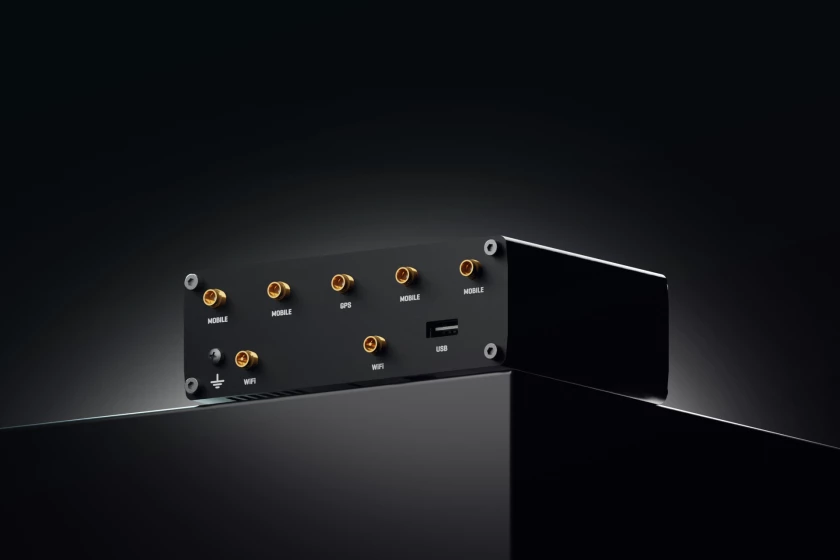

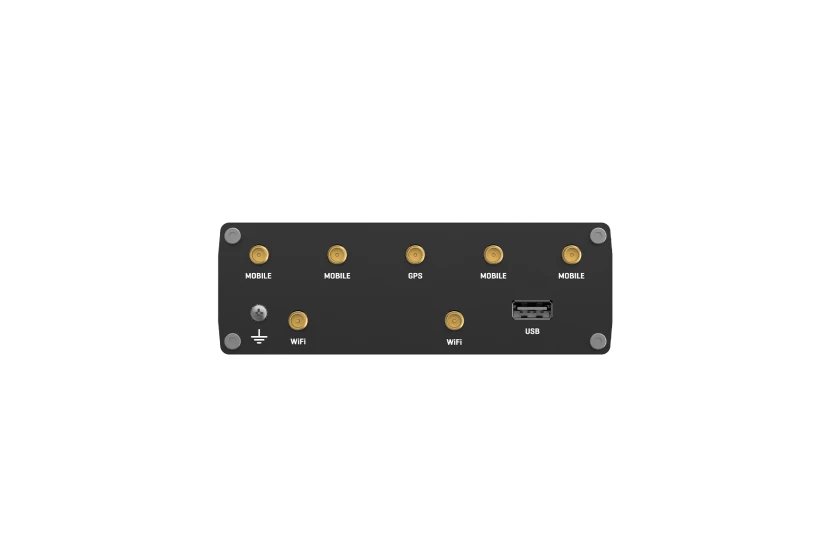

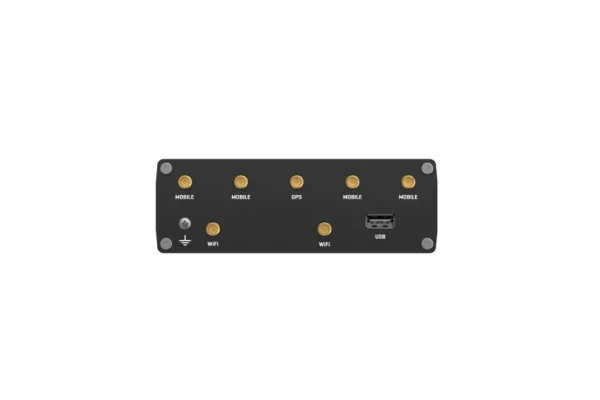

- Antennas: 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS.
- Power: 9 – 50 VDC via 4-pin DC power connector; 18 W PSU included.
- Operating Temperature: -40 °C to 75 °C.
- Dimensions: 132 x 44.2 x 95.1 mm; Weight: 533 g.
- Mounting Options: DIN rail (can be mounted on two sides), flat surface placement.
- Ingress Protection Rating:
- Operating System: RutOS (OpenWrt-based Linux OS) with advanced security features and specialised industrial protocols.
What is an Industrial 5G Router?
An industrial 5G router is a networking device designed to provide high-speed, reliable internet connectivity in industrial environments. It supports 5G cellular networks and is built to withstand harsh conditions, ensuring continuous operation in critical applications.
Product Features
- Ultra-high cellular speeds up to 3.3 Gbps.
- Dual SIM with auto-failover and backup WAN.
- Supports both SA and NSA 5G architectures.
- Backwards compatibility with 4G LTE Cat 20 and 3G networks.
- 5 x Gigabit Ethernet ports.
- Dual-band Wi-Fi (802.11ac) with speeds up to 867 Mbps.
- Integrated GNSS (GPS) for location tracking.
- Advanced RutOS with security features and industrial protocols.
- Rugged aluminium housing with IP30 rating.
- Wide operating temperature range (-40 °C to 75 °C).
Benefits
The Teltonika RUTX50 offers unparalleled connectivity solutions for industrial applications requiring high-speed data transmission and reliable internet access. Its dual SIM capability ensures uninterrupted communication, while the advanced RutOS provides robust security and remote management features.
Key Benefits:
- Ensures continuous connectivity with dual SIM and auto-failover.
- Supports high-speed data transmission for bandwidth-intensive applications.
- Provides secure and remote management through RutOS.
- Suitable for deployment in harsh industrial environments.
- Facilitates easy integration with existing network infrastructure.
Applications
- Industrial automation and control systems.
- Remote monitoring and management.
- Transportation and logistics.
- Energy and utility sectors.
- Smart city infrastructure.
- Retail and point-of-sale systems.
- Healthcare and emergency services
How to Use
Mount the router to deploy the Teltonika RUTX50 using the DIN rail or flat surface options provided. Connect the necessary antennas to their respective ports. Insert SIM cards into the dual SIM slots and connect the power supply. Configure the router settings through the RutOS interface to suit your network requirements.
Cautions
- Ensure the power supply voltage is within the specified range (9 – 50 VDC) to prevent damage.
- Avoid exposure to moisture or conductive contaminants to maintain IP30 protection.
- Use appropriate mounting hardware to secure the router and prevent mechanical stress.
Why You Should Buy
The Teltonika RUTX50 is an ideal solution for industries requiring reliable, high-speed internet connectivity. Its robust design, advanced features, and ease of integration make it valuable for enhancing operational efficiency and ensuring continuous communication in critical applications.
Where and Who Uses It
The RUTX50 is widely utilised across various industries, including manufacturing, transportation, energy, and healthcare. Engineers, IT professionals, and system integrators deploy this router to establish secure and reliable network connections in environments where consistent internet access is crucial.
About the Manufacturer
Teltonika Networks is a global provider of networking solutions, specializing in the development of industrial-grade connectivity devices. With a focus on innovation and quality, Teltonika offers a range of products designed to meet the demands of various industries, ensuring reliable and secure data communication.
